PneuTech RKHD-60VSD-125B RKHD Series 60HP Variable Speed Drive- Base Mounted

Model #RKHD-60VSD-125B
dba 74
Dimensions LxWxH (in) 83x60x77
HP 60
kW 75
PSI 100-125
Tank (gal) NA
Similar to
  • Gardner Denver L22
  • Quincy QGS-30
  • Quincy QGD-30
  • Quincy QSI-40
  • Quincy QSI-40C
  • Elgi EN22-125
  • Elgi EG22-125
  • Ingersoll Rand RS22i-A125
  • Boge C30-125
  • Boge C22-2N
  • Kaishan KRSB30-115
  • Chicago Pneumatic QRS30-125
  • Atlas Copco G22-125
  • Atlas Copco GA22-125
  • Atlas Copco GA22+125
  • Kaiser AS30-125
  • Kaiser ADS30-125
  • Sullair S-2200
  • Sullair ST-2208
  • Curtis NXB22-125

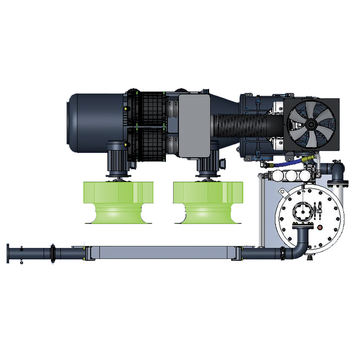

Cooling System

Cooling System

The Variable Speed Drive (VSD) series has been developed and sized to work at a 100% duty cycle even in the most severe conditions. Energy savings are achieved due to an inverter controlled fan of the oil cooler. All the components are fully enclosed and protected from contamination. The air cooling system has been sized to work at up to 125° F ambient temperature.

Industry 4.0 Capable

Industry 4.0 Capable

RKHD Compressors are Industry 4.0-Ready. The compressor can be networked locally and managed remotely via the internet.

Benefits of Speed Control

Benefits of Speed Control

The high-precision detection of the working pressure and the motor speed control guarantees the perfect flow rate as it reacts to real air demand of the operation, offering considerable energy savings.

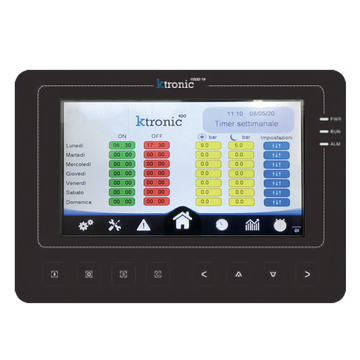

Electronic Controller

Electronic Controller

The intuitive KTronic 1000 touch screen panel permits full access to the functions, parameter control and diagnostics of the unit, increasing the efficiency of the compressor.

Improved Air/Oil Temperature Control

Improved Air/Oil Temperature Control

The air and oil coolers are separate and managed individually on the RKHD-VSD Series. The oil cooler fan is inverter controlled and dynamically manages the temperature of the oil. The perfectly controlled oil temperature is a benefit to the oil circuit and further improves energy savings. In addition, the separate air cooler management allows optimization of the air temperature at the compressor outlet, avoiding condensation and eliminating the damages caused by moisture. As a result, the dryer after the compressor also benefits from the lower operating load.

Easy Maintenance

Easy Maintenance

The access panels are easily removed and permit quick access to all the components that require routine maintenance. The air-oil separator cartridge can be quickly replaced with an easy rotation of the tank lid on its pivot arm.

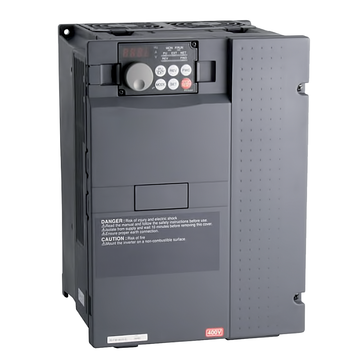

Variable Speed Drive Technology

Variable Speed Drive Technology

The VSD unit allows the compressor to be very flexible and efficient in responding to changes in air demand. The required air demand is managed through the inverter that constantly adjusts the speed of the electric motor and the compressor. The real air flow and pressure values are constantly monitored through the electronic controller to guarantee achievement of the preset values.
