Experience the full spectrum of PneuTech's industrial-grade compressed air technology, from energy-efficient rotary screw compressors to advanced air treatment systems. We operate PneuTech as our dedicated brand for industrial compressed air systems engineered for maximum efficiency, reliability, and performance across all industrial applications.

PneuTech Offers Complete Sales, Installation, and Support as Part of Fluid-Aire Dynamics

Fluid-Aire DynamicsBrands We SellPneuTech Air Compressors

Product Lines

Image for Order Your PneuTech Equipment Today
Order Your PneuTech Equipment Today
Get a Quote
Chicago: 847-678-8388
Chicago: 847-678-8388 Milwaukee: 414-273-1994 Minneapolis: 612-246-3432 Detroit: 248-775-1459 Philadelphia: 610-913-9100

Rotary Screw Compressors - Fixed Speed

RK Series Fixed Speed (5-60 HP)

RK Series Fixed Speed (5-60 HP)

  • Belt Drive Design
  • Wye Delta Start
  • Electronic Controller
  • Easily Removable Panels
  • Minimal Hose Design
  • Cabinet Filtration
  • Oversized Air-Oil Separator Tank

Integrated Dryer Option available on all RK Fixed Speed 5-20 HP compressors.

KTronic10 Controller Features

  • Pressure Parameters
  • Current Duty Cycle
  • Maintenance Timers
  • Alarm Conditions/Reset
  • Cooling Fan Control
  • Fan cycles only when needed.
  • Discharge Pressure
  • Oil Temperature
  • Phase Monitor

5 Year Warranty on Major Components

1 Year Warranty on the Entire Unit

Download Brochure Explore Models
Model HP kW CFM PSI dBA Tank Voltage
RK-5F-145T 5 4 19.6 145 65 71g 208/230/460
RK-7.5F-145T 7.5 5 24.7 145 66 71g 208/230/460
RK-10F-145T 10 7 38.8 145 67 71g 208/230/460
RK-15F-145T 15 11 52.2 145 68 132g 208/230/460
RK-20F-145T 20 15 67.9 145 68 132g 208/230/460
RK-5F-145T-D 5 4 19.6 145 65 71g 208/230/460
RK-7.5F-145T-D 7.5 5 24.7 145 66 71g 208/230/460
RK-10F-145T-D 10 7 38.8 145 67 71g 208/230/460
RK-15F-145T-D 15 11 52.2 145 68 132g 208/230/460
RK-20F-145T-D 20 15 67.9 145 68 132g 208/230/460
RK-25F-125B 25 18 109.8 125 69 208/230/460
RK-30F-125B 30 22 118.8 125 69 208/230/460
RK-40F-125B 40 30 167 125 70 208/230/460
RK-50F-125B 50 37 215 125 72 460/3/60
RK-60F-125B 60 45 260 125 68 460/3/60
RKHD Series Fixed Speed (50-420 HP)

RKHD Series Fixed Speed (50-420 HP)

  • Industry 4.0 Capable
  • Intuitive KTronic 1000 Electronic Controller
  • Remote Control and Connectivity
  • Improved Air/Oil Temperature Control
  • Easy Maintenance
  • Energy Savings Across the Entire System
  • Oversized Exhaust Fan
  • Easy Access Sump Tank
  • Low Speed Air-End

10 Year Warranty on the Air-End

5 Year Warranty on Major Components

1 Year Warranty on the Entire Unit

Download Brochure Explore Models
Model HP KW Pressure
(PSI)		 Air Flow
(CFM)
(ISO1217)		 Outlet Noise Level
(dB/A)
RKHD-50F 50 40 125 200 1-1/2" 74
RKHD-75F 75 55 125 346 1-1/2" 74
RKHD-100F 100 75 125 457 2" 74
RKHD-125F 125 90 125 553 3" Flange 76
RKHD-150F 150 110 125 666 3" Flange 76
RKHD-180F 180 132 125 800 4" Flange 78
RKHD-220F 220 160 125 894 4" Flange 78
RKHD-270F 270 200 125 1172 4" Flange 78
RKHD-340F 340 250 125 1407 5" Flange 78
RKHD-420F 420 315 125 1782 5" Flange 78
RSP Series Fixed Speed (40-450 HP)

RSP Series Fixed Speed (40-450 HP)

  • Open Frame & Enclosed Options
  • Heavy-duty, Dry-Type Air Intake Filter
  • Dedicated Fan Motor
  • High-Efficiency Electric Motor
  • Large Separator Tank
  • Direct Drive
  • Automatic Drain Valve
  • Updraft Design Cooling System
  • Oversized & Rebuildable Air-End
  • Line Reactor
  • VSD Fan Motor
  • Electronic Control Cabinet
  • Unlimited Motor Starts Per Hour
  • No inrush current to overheat the motor
  • Consistent Discharge Pressure
  • Soft Motor Starts
  • Up To 70% Turndown
  • Reduced Power Consumption

10 Year Warranty on Air-End

5 Year Warranty on Major Components

1 Year Warranty on the Entire Unit

Download Brochure Explore Models
Model PSI Frame CFM HP kW NaPT Voltage
(3ph)
RSP-40F 125 1200 166 40 30 1 1/4 230/460
150 1200 115
175 1200 102
RSP-50F 125 1200 210 50 37 1 1/4 230/460
150 1200 150
175 1200 122
RSP-60F 125 1200 280 60 45 1 1/4 230/460
150 1200 225
175 1200 200
RSP-75F 100 1600 360 75 55 1 1/2 230/460
125 1600 323
150 1600 280
RSP-100F 100 1600 485 100 75 2 230/460
125 1600 450
150 1600 376
RSP-125F 100 1600 580 125 90 2 230/460
125 1600 530
150 1600 480
RSP-125-20 100 2000 630 125 90 2 460
125 2000 545
150 2000 490
RSP-150F 100 2000 740 150 110 2 460
125 2000 700
150 2000 610
RSP-200F 100 2000 980 200 160 3 460
125 2000 900
150 2000 810
RSP-250F 100 2000 1140 250 200 3 460
125 2000 1065
150 2000 960
RSP-300F 100 2000 1260 300 225 3 460
125 2000 1145
150 2000 1020
RSP-300F-32 100 3200 1500 300 225 3 460
125 3200 1325
150 3200 1100
RSP-350F 100 3200 1650 350 260 3 460
125 3200 1566
150 3200 1350
RSP-400F 100 3200 1790 400 300 3 460
125 3200 1733
150 3200 1533
RSP-450F 100 3200 1920 450 335 4 460
125 3200 1770
150 3200 1633

Rotary Screw Compressors - Variable Speed Drive (VSD)

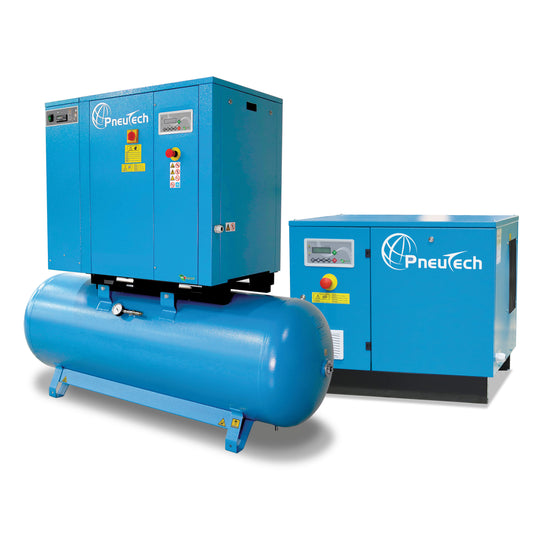

RK VSD Series (5-10 HP)

RK VSD Series (5-10 HP)

The RK Series VSD Belt Drive Series air compressors are rotary screw-type and available in 5HP and 10HP configurations. These units are designed for energy efficiency and longevity.

Available in tank mounted, integrated dryer, and Low Voltage configurations.

RK VSD 5HP-10HP Belt

  • Variable Speed Drive Technology
  • Same Features & Benefits of Larger VSD Units
  • Unlimited Motor Starts per Hour
  • Consistent Discharge Pressure
  • Up to 70% Turn-Down
  • Soft Motor Starts
  • Reduced Power Consumption

KTronic10 Controller Features

  • Pressure Parameters
  • Current Duty Cycle
  • Maintenance Timers
  • Alarm Conditions/Reset
  • Cooling Fan Control
  • Fan cycles only when needed.
  • Discharge Pressure
  • Oil Temperature
  • Phase Monitor

5 Year Warranty on Major Components

1 Year Warranty on the Entire Unit

Download Brochure Explore Models
Model # Dryer
Included		 CFM dBA HP kW PSI Tank Size Voltage
RK-5VSD-145B No 15.26 66 5 4 145 N/A 460
RK-5VSD-145B-L No 15.25 66 5 4 145 N/A 200/230
RK-10VSD-IIST No 43 67 10 7 115 71 460
RK-10VSD-IIST-L No 38.5 67 10 7 115 71 200/230
RK-10VSD-IIST-D Yes 43 67 10 7 115 71 460
RK-10VSD-IIST-D-L Yes 38.5 67 10 7 115 71 200/230

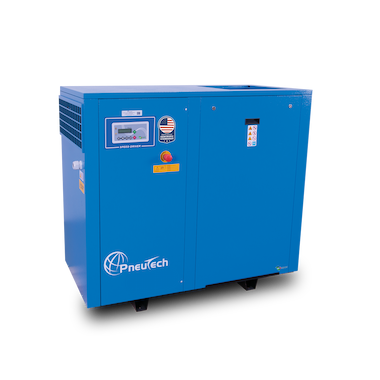

RK VSD Series (15-60 HP)

RK VSD Series (15-60 HP)

  • Oversized Air/Oil Cooler
  • Low RPM Airend Assembly
  • Integrated Oil Sump Tank
  • Spin-on Filtration
  • Direct Drive Design
  • Oversized Air-Oil Separator Tank
  • Condensate Trap
  • TEFC Motor (totally enclosed fan-cooled)
  • Vented Electrical Cabinet

VFD Drive for Longer Life and Significant Energy Savings

  • Low Sound Enclosure - Quiet Operation
  • Removable Panels for Convenient Access
  • Reduced Oil Leakage - Minimal Hose Design
  • Compact Footprint - Saves Valuable Floor Space
  • Cycling Cooling Fan

Integrated Dryer Option on All RK VSD Speed 5-20 HP compressors

Variable Speed Drive Technology

  • Unlimited Motor Starts per Hour
  • Consistent Discharge Pressure
  • Up to 70% Turn-Down
  • Soft Motor Starts
  • Reduced Power Consumption

KTronic10 Controller Features

  • Pressure Parameters
  • Current Duty Cycle
  • Maintenance Timers
  • Alarm Conditions/Reset
  • Cooling Fan Control
  • Fan cycles only when needed.
  • Discharge Pressure
  • Oil Temperature
  • Phase Monitor

5 Year Warranty on Major Components

1 Year Warranty on the Entire Unit

Download Brochure Explore Models
Model # CFM dBA HP kW PSI Voltage
RK-15VSD-I15B 55 65 15 11 115 460
RK-15VSD-I15B-L 56.8 65 15 11 115 200/230
RK-20VSD-I15B 69.8 65 20 15 115 460
RK-20VSD-I15B-L 71.3 65 20 15 115 200/230
RK-25VSD-I15B 107.4 68 25 18 115 460
RK-25VSD-I15B-L 95.9 68 25 18 115 200/230
RK-30VSD-I15B 123.2 68 30 22 115 460
RK-30VSD-I15B-L 111.6 68 30 22 115 200/230
RK-40VSD-I15B-L 166 68 40 30 115 200/230
RK-50VSD-I15B 223.4 68 50 37 115 460
RK-50VSD-I15B-L 186 68 50 37 115 200/230
RK-60VSD-I15B 273.3 68 60 45 115 460
RK-60VSD-I15B-L 260 68 60 45 115 200/230
RSP Series Variable Speed (40-450 HP)

RSP Series Variable Speed (40-450 HP)

  • Open Frame & Enclosed Options
  • Heavy-duty, Dry-Type Air Intake Filter
  • Dedicated Fan Motor
  • High-Efficiency Electric Motor
  • Large Separator Tank
  • Direct Drive
  • Automatic Drain Valve
  • Updraft Design Cooling System
  • Oversized & Rebuildable Air-End
  • Variable Speed Drive Controller
  • Line Reactor
  • VSD Fan Motor
  • Electronic Control Cabinet
  • Unlimited Motor Starts Per Hour
  • No inrush current to overheat the motor
  • Consistent Discharge Pressure
  • Soft Motor Starts
  • Up To 70% Turndown
  • Reduced Power Consumption

10 Year Warranty on Air-End

5 Year Warranty on Major Components

1 Year Warranty on the Entire Unit

Download Brochure Explore Models
Model PSI Frame CFM HP kW NaPT Voltage
(3ph)
RSP-40VSD 125 1200 166 40 30 1 1/4 230/460
150 1200 115
175 1200 102
RSP-50VSD 125 1200 210 50 37 1 1/4 230/460
150 1200 150
175 1200 122
RSP-60VSD 125 1200 280 60 45 1 1/4 230/460
150 1200 225
175 1200 200
RSP-75VSD 100 1600 360 75 55 1 1/2 230/460
125 1600 323
150 1600 280
RSP-100VSD 100 1600 485 100 75 2 230/460
125 1600 450
150 1600 376
RSP-125VSD 100 1600 580 125 90 2 230/460
125 1600 530
150 1600 480
RSP-125-20VSD 100 2000 630 125 90 2 460
125 2000 545
150 2000 490
RSP-150VSD 100 2000 740 150 110 2 460
125 2000 700
150 2000 610
RSP-200VSD 100 2000 980 200 160 3 460
125 2000 900
150 2000 810
RSP-250VSD 100 2000 1140 250 200 3 460
125 2000 1065
150 2000 960
RSP-300VSD 100 2000 1260 300 225 3 460
125 2000 1145
150 2000 1020
RSP-300VSD-32 100 3200 1500 300 225 3 460
125 3200 1325
150 3200 1100
RSP-350VSD 100 3200 1650 350 260 3 460
125 3200 1566
150 3200 1350
RSP-400VSD 100 3200 1790 400 300 3 460
125 3200 1733
150 3200 1533
RSP-450VSD 100 3200 1920 450 335 4 460
125 3200 1770
150 3200 1633
RKHD VSD Series (50-420 HP)

RKHD VSD Series (50-420 HP)

PneuTech RKHD Features

  • Industry 4.0 Capable
  • Intuitive KTronic 1000 Electronic Controller
  • Remote Control and Connectivity
  • Improved Air/Oil Temperature Control
  • Easy Maintenance
  • Energy Savings Across the Entire System
  • Oversized Exhaust Fan
  • Easy Access Sump Tank
  • Low Speed Air-End

Direct Drive • Single Stage • Variable Speed

SM IE3 Asynchronous Motor

Variable Speed Drive Technology

  • Consistent Discharge Pressure
  • Soft Motor Starts
  • Up to 60% Turn-Down
  • Reduced Power Consumption

10 Year Warranty on the Air-End

5 Year Warranty on Major Components

1 Year Warranty on the Entire Unit

Download Brochure Explore Models
Model HP KW Pressure
(PSI)		 Air Flow
(CFM)		 Outlet Noise Level
(dB/A)
RKHD-75VSD 75 55 115 326 1-1/2" 74
RKHD-100VSD 100 75 115 446 2" 74
RKHD-125VSD 125 90 115 554 3" Flange 76
RKHD-150VSD 150 110 115 661 3" Flange 76
RKHD-180VSD 180 132 110 862 4" Flange 78
RKHD-220VSD 220 160 110 922 4" Flange 78
RKHD-270VSD 270 200 110 1243 4" Flange 78
RKHD-340VSD 340 250 110 1501 5" Flange 78
RKHD-420VSD 420 315 110 1872 5" Flange 78

Reciprocating/Piston Compressors

PF Series (5-10 HP)

PF Series (5-10 HP)

High-value at a competitive price. Featuring one of the most robust pump designs in the industry.

  • Performance Air Filter
  • Over-Sized Oil Breather
  • Large Receiver Tank (ASME Certified)
  • Optional Dual Control
  • Cast Iron & Crankshaft Pump
  • Low RPM for Longer Life
  • High-Efficiency Motor
  • Included with Fully Packaged Units
  • Air-Cooled Aftercooler
  • Low Oil Shutdown
  • Automatic Drain Valve

2 Year Warranty on the Pump

1 Year Warranty on the Entire Unit

Download Brochure Explore Models
Model # CFM HP Max
Amp Draw		 Max PSI Pump
RPM		 Tank
(gal)		 Tank
Configuration		 Voltage
PF-5-80GV-230/1 17.4 5 23 A 175 860 80 Vertical 230/1
PF-5-80GV-460/3 17.4 5 7 A 175 860 80 Vertical 460/3
PF-7.5-80GV-230/1 22.9 7.5 30 A 175 1130 80 Vertical 230/1
PF-7.5-80GV-230/3 22.9 7.5 18 A 175 1130 80 Vertical 230/3
PF-7.5-80GV-230/1-FP 26.6 7.5 34 A 175 660 80 Vertical 230/1
PF-7.5-80GV-230/3-FP 26.6 7.5 21 A 175 660 80 Vertical 230/3
PF-10-120GV-230/3-FP 35.5 10 27 A 175 880 120 Vertical 230/3
PF-10-120GH-230/3-FP 35.5 10 27 A 175 880 120 Horizontal 230/3

Compressed Air Dryers

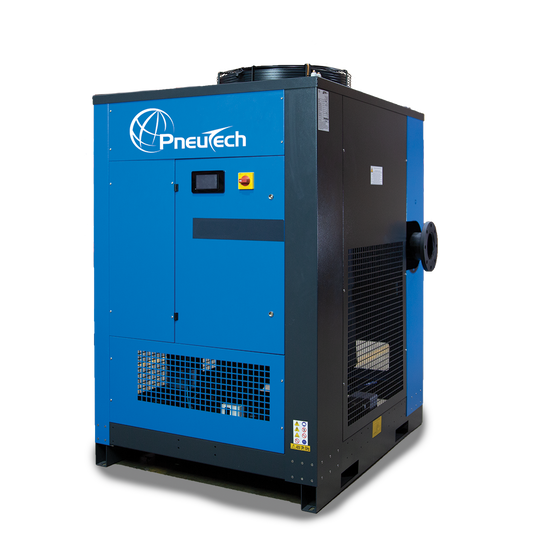

RDA VSD Variable Speed Refrigerated Dryers

RDA VSD Variable Speed Refrigerated Dryers

Refrigeration Compressor

  • Reduced Power Consumption
  • Consistent Dewpoint
  • Soft Motor Starts
  • Up to 75% Turndown
  • Variable Speed Drive Fan
  • Electronic Controller
  • Large Touch Screen
  • RS485 Interface

5 Year Warranty on Major Components

1 Year Warranty on the Entire Unit

Download Brochure Explore Models
Model # CFM NPT Refrigerant Voltage
RDA-675VSD-436 675 2.5" NPTF R407C 460/3/60
RDA-925VSD-436 925 3" NPTF R407C 460/3/60
RDA-1225VSD-436 1225 3" NPTF R407C 460/3/60
RDA-1850VSD-436 1850 5" flange R407C 460/3/60
RDA-2450VSD-436 2450 5" flange R407C 460/3/60
RDA-3050VSD-436 3050 6" flange R407C 460/3/60
RDA-3700VSD-436 3700 6" flange R407C 460/3/60
RDA-4300VSD-436 4300 8" flange R407C 460/3/60
RDA Series Non-Cycling Refrigerated Dryers (13-550 CFM)

RDA Series Non-Cycling Refrigerated Dryers (13-550 CFM)

  • Excellent Performance in High Ambient
  • Patented Vertical Heat Exchanger Design
  • Simple &Easy Serviceability
  • High-Efficiency Refrigerant Compressor
  • Reduced Energy Consumption
  • Electronic Control
  • Generous Condenser Unit Size
  • Single Point Condensate Drain
  • Programmable Condensate Drain Control

5 Year Warranty on Major Components

1 Year Warranty on the Entire Unit

Download Brochure Explore Models
Model # CFM Heat Loading (Kw) HP NPT Voltage
RDA-13-NC-11G 13 0.55 4 3/4" 115/1/60
RDA-25-NC-11G 25 0.70 7.5 3/4" 115/1/60
RDA-35-NC-11G 35 0.70 10 3/4" 115/1/60
RDA-50-NC-11G 50 1.20 15 3/4" 115/1/60
RDA-75-NC-11G 75 1.60 20 1" 115/1/60
RDA-100-NC-11G 100 2.30 25 1" 115/1/60
RDA-130-NC-11G 130 2.30 30 1-1/2" 115/1/60
RDA-150-NC-21G 150 3.60 35 1-1/2" 220/1/60
RDA-175-NC-21G 175 3.60 40 1-1/2" 220/1/60
RDA-225-NC-21G 225 4.80 50 1-1/2" 220/1/60
RDA-300-NC-21G 300 4.80 60 2" 220/1/60
RDA-350-NC-21G 350 5.60 75 2" 220/1/60
RDA-450-NC-43G 450 7.20 100 2-1/2" 460/3/60
RDA-550-NC-43G 550 8.20 125 2-1/2" 460/3/60
FDS Series Desiccant Dryers (10-800 CFM)

FDS Series Desiccant Dryers (10-800 CFM)

  • Low Dewpoints to -40° F
  • Typically Requires < 10% Purge Air
  • Reduced Operating costs
  • Simple, Easy Maintenance
  • Robust Construction
  • Protect Compressed Air Lines From Oil, Water, Rust, and Freezing
  • MLT: Micro Logic Controller or PLC: Programmed Logic Controller
Download Brochure Explore Models
Model # Control Type Dryers
per Row		 Max CFM Max HP NPT Voltage # of Rows Weight/row
FDS-10-116 MLT 1 10 3 3/4 115/1/60 1 42
FDS-27-116 MLT 1 27 7.5 3/4 115/1/60 1 46
FDS-40-116 MLT 1 40 10 3/4 115/1/60 1 46
FDS-80-116 MLT 2 80 20 1-1/2 115/1/60 1 120
FDS-120-116 MLT 3 120 30 1-1/2 115/1/60 1 170
FDS-200-116 PLC 3 200 40 1-1/2 115/1/60 1 170
FDS-240-116 PLC 2 240 50 1-1/2 115/1/60 2 120 x 2
FDS-400-116 PLC 3 400 75 1-1/2 115/1/60 2 170 x 2
FDS-600-116 PLC 3 600 125 1-1/2 115/1/60 3 170 x 3
FDS-800-116 PLC 3 800 150 1-1/2 115/1/60 4 170 x 4

Inline Filtration & Separation Systems

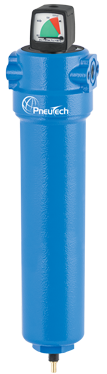

FHO Series Filter Housings (45-1625 CFM)

FHO Series Filter Housings (45-1625 CFM)

Filter Housings

  • Includes Differential Pressure Gauge
  • Automatic Float Drain
  • 100% Aluminum & Powder Coat Finish
  • Pleated Media Design Increased Surface Area
  • Decreased Pressure Drop
  • Maximizes Contaminant Capture

Filter Media Types

Particulate Filter

  • Particulate removal
  • 99.99% efficiency
  • Particle removal down to 3 microns

Activated Carbon Filter

  • High purity extended surface area activated carbon removes hydrocarbon mist and vapor
  • Max oil carryover 0.002 PPM w/w
  • Nominal Pressure Drop 1.2 PSID

2-in-1 Filter

  • Particulate removal or coalescing prefiltration
  • 99.99% efficiency
  • Particle removal down to 1 micron
  • Nominal pressure drop 0.5 PSID
  • ISO 8573 (Class 3)

Utility Grade Coalescing Filter

  • General compressed air filtration
  • 99.999% Efficiency
  • Particulate removal down to 1 Micron
  • Max oil carryover 0.4 PPM w/w
  • Nominal Pressure Drop 0.75 PSID
  • ISO 8573 (Class 2)

High Efficiency Coalescing Filter

  • High quality compressed air filtration
  • 99.999% Efficiency
  • Particle Removal down to 0.01 Micron
  • Max oil carryover 0.008 PPM w/w
  • Nominal pressure drop 0.5 PSID
  • ISO 8573 (Class 1)
Download Brochure Explore Models

Filter Housings with Particulate Element 45-1625 CFM

Model NPT CFM
@ 100 PSIG		 CFM
@ 125 PSIG		 Overall Height
(in)		 Clearance Required
to Change Element		 Diameter
(in)		 Element # Micron
Rating
FHO-45-P 1/2 45 57 11 2.5 4 9060084 3
FHO-80-P 3/4 80 100 14 3.5 4 9060114 3
FHO-200-P 1 200 250 29 5 5 9060174 3
FHO-460-P 1-1/2 460 575 31 6.5 5 9060234 3
FHO-885-P 2 885 905 40.5 30.5 7 9060289 3
FHO-1000-P 2-1/2 1000 1250 40.5 30.5 7 9060314 3
FHO-1625-P 3 1625 2032 43 31 10 9060364 3

FHO Series Filter Housings with Activated Carbon Element 45-1625 CFM

Model NPT CFM
@ 100 PSIG		 CFM
@ 125 PSIG		 Overall Height
(in)		 Clearance Required
to Change Element		 Diameter
(in)		 Element # PPM
Rating
FHO-45-AC 1/2 45 57 11 2.5 4 9060085 0.005
FHO-80-AC 3/4 80 100 14 3.5 4 9060115 0.005
FHO-200-AC 1 200 250 29 5 5 9060175 0.005
FHO-460-AC 1-1/2 460 575 31 6.5 5 9060235 0.005
FHO-885-AC 2 885 905 40.5 30.5 7 9060290 0.005
FHO-1000-AC 2-1/2 1000 1250 40.5 30.5 7 9060315 0.005
FHO-1625-AC 3 1625 2032 43 31 10 9060365 0.005

Filter Housings with 2-in-1 Element 45-460 CFM

Model NPT CFM
@ 100 PSIG		 CFM
@ 125 PSIG		 Overall Height
(in)		 Clearance Required
to Change Element		 Diameter
(in)		 Element # Micron
Rating
FHO-45-21 1/2 45 57 11 2.5 4 9060090 N/A
FHO-80-21 3/4 80 100 14 3.5 4 9060120 N/A
FHO-200-21 1 200 250 29 5 5 9060180 N/A
FHO-460-21 1-1/2 460 575 31 6.5 5 9060240 N/A

Filter Housings with Utility Coalescing Element 45-1625 CFM

Model NPT CFM
@ 100 PSIG		 CFM
@ 125 PSIG		 Overall Height
(in)		 Clearance Required
to Change Element		 Diameter
(in)		 Element # Micron
Rating
FHO-45-UC 1/2 45 57 11 2.5 4 9060105 1
FHO-80-UC 3/4 80 100 14 3.5 4 9060135 1
FHO-200-UC 1 200 250 29 5 5 9060195 1
FHO-460-UC 1-1/2 460 575 31 6.5 5 9060255 1
FHO-885-UC 2 885 905 40.5 30.5 7 9060305 1
FHO-1000-UC 2-1/2 1000 1250 40.5 30.5 7 9060330 1
FHO-1625-UC 3 1625 2032 43 31 10 9060380 1

Filter Housings with High Efficiency Coalescing Element 45-1625 CFM

Model NPT CFM
@ 100 PSIG		 CFM
@ 125 PSIG		 Overall Height
(in)		 Clearance Required
to Change Element		 Diameter
(in)		 Element # Micron
Rating
FHO-45-HE 1/2 45 57 11 2.5 4 9060110 0.01
FHO-80-HE 3/4 80 100 14 3.5 4 9060140 0.01
FHO-200-HE 1 200 250 29 5 5 9060200 0.01
FHO-460-HE 1-1/2 460 575 31 6.5 5 9060260 0.01
FHO-885-HE 2 885 905 40.5 30.5 7 9060310 0.01
FHO-1000-HE 2-1/2 1000 1250 40.5 30.5 7 9060335 0.01
FHO-1625-HE 3 1625 2032 43 31 10 9060385 0.01

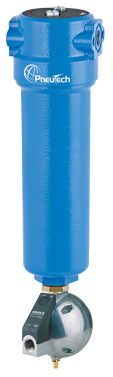

SHO Series Moisture Separators with Float Drain 45-460 CFM

Model NPT CFM
@ 100 PSIG		 CFM
@ 125 PSIG		 Height
(in)		 Diameter
(in)
SHO-45 1/2 45 57 14.5 4
SHO-80 3/4 80 100 17 4
SHO-200 1 200 250 17 5
SHO-460 1-1/2 460 575 25 5

Receiver Tanks & Condensate Management

Horizontal & Vertical Receiver Tanks

Horizontal & Vertical Receiver Tanks

Horizontal & Vertical 30-3000 Gallons

  • Ultra-Durable Base Ring Support Included
  • Exceptional Reliability ASME Certified
  • Maximized Sustainability
  • High Strength Enamel Painted Carbon Steel
  • Large Inspection Port
  • Large ANSI Flange Connection
  • Drain Valve
  • Convenient Lifting Lug
Download Brochure Explore Models
Model # A B C D DIA Drain
Valve Port		 E Gal Main
Ports		 PSI Safety
Port		 TL Wt
9290805 2.5 19 19 18 16 1/4 10.5 30 1-1/2 200 1/2 38 79
9290825 3.25 20 24 26 20 1/2 13.25 60 2 200 3/4 48 162
9290865 3.25 20 24 36 20 3/4 13.25 80 2 200 1" 63 207
9290905-DP 3.5 24 29 42 24 3/4 15.5 120 2 200 1-1/2 67 373
9290905 3.5 24 28 42 24 3/4 15.5 120 2 200 3/4 67 316
9290945-DP 4 30 36 42 30 1 19 200 2 200 2 72 570
9290945 4 30 34 42 30 1 19 200 2 200 1-1/2 72 473
9290985-DP 4 30 36 54 30 1 19 240 2 200 2 84 622
9290985 4 30 34 54 30 1 19 240 2 200 2 84 542
9291025 3 36 40 52 36 1 21 400 2 165 1-1/2 89 696
Model # A B C D DIA Drain Valve
Port		 E Gal Main
Ports		 PSI Safety
Port		 TH Wt
9290065 1-3/4" 10 n/a n/a 16 1/4" NPT 31 30 1-1/2" NPT 200 1/2" NPT 40 79
9290105 2-1/2" 11 n/a n/a 20 1/4" NPT 41 60 2" NPT 200 3/4" NPT 50 151
9290145 6 16 27 48 20 1/2" NPT 59 80 2" NPT 200 1/2" NPT 69 225
9290225 8 20 34 47 24 1" NPT 61 120 2" NPT 200 1" NPT 75 275
9290265 8 20 36 51 30 1" NPT 67 200 2" NPT 200 1" NPT 80 505
9290305 8 20 40 59 30 1" NPT 79 240 2" NPT 200 1" NPT 92 643
9290365 8 24 44 64 36 1" NPT 84 400 3" NPT 200 1" NPT 102 858
9290345 8 24 44 64 36 1" NPT 84 400 3" NPT 165 1" NPT 102 717
9290425 8 26 52 77 36 1" NPT 103 500 3" NPT 200 1" NPT 125 1135
9290405 8 26 52 77 36 1" NPT 103 500 3" NPT 165 1" NPT 125 1100
Model # A B C D DIA Drain Valve
Port		 E F Gal Main
Ports		 PSI Safety
Port		 TH Wt
9290445 8 27 39 52 42 1" NPT 77 102 660 4" FLNG 150 1" NPT 125 1391
9290485 8 32 48 64 48 1" NPT 96 128 1060 6" FLNG 155 1" NPT 152 1950
9290525 8 34 46 72 54 1-1/4" NPT 110 148 1550 6" FLNG 165 1-1/4" NPT 174 3037
9290565 8 34 46 72 60 1-1/4" NPT 110 148 2200 6" FLNG 150 1-1/4" NPT 182 3503
9290605 8 34 46 90 60 1-1/4" NPT 146 202 2560 6" FLNG 150 1-1/4" NPT 228 4314
9290645 8 36 48 82 66 1-1/4" NPT 128 174 3000 6" FLNG 150 1-1/4" NPT 222 5385
CSO Series Oil/Water Separators

CSO Series Oil/Water Separators

  • Simple But Effective Process
  • Cyclonic Depressurization Chamber
  • Quick and Easy Service
  • Disposal Replacement Filter Media

CSO Models   40CFM-80CFM

  • Mountable and Compact Oil & Water Condensate Separation

CSO Models 150CFM - 1250 CFM

  • Developed for High-Volume Compressed Air Systems

Filter Bags

Quick, simple, and inexpensive to replace.

Integrated Water Quality Test Kit Included with 150-1250 CFM Units

Download Brochure Explore Models
Model # Dimensions
59°-77°-104°		 Max condensate flow
59°-77°-104°		 Max FAD
59°-77°-104°		 Max oil absorption
59°-77°-104°
CSO-40 19.1-5.6-13.2 0.15-0.24-0.51 43.05-37.8-21.9 0.91-0.80-0.46
CSO-80 32.2-5.6-26.4 0.32-0.5-1.1 88.9-78.05-45.2 1.9-1.7-0.95
CSO-150 9.6-16.2-16.4 0.61-0.9-1.7 170-142-72.3 6.4-5.4-2.8
CSO-300 14.5-37.1-32.3 0.61-0.9-1.7 353-296-150 13.3-11.2-5.7
CSO-725 14.5-37.1-32.3 2.6-4.6-8.5 861-723-366 32.3-27.1-13.8
CSO-1250 15.2-44.8-37.8 5.3-7.9-14.7 1495-1254-635 56-47-23.8

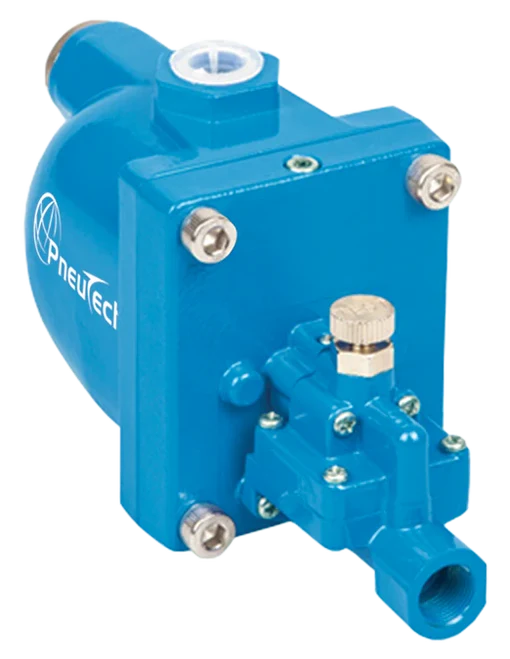

Zero Loss Condensate Drains

Zero Loss Condensate Drains

Automatic Float Drain for Compressed Air Systems

  • Wide Variety of Applications
  • Quick & Easy Installations
  • Energy Efficiency
Download Brochure Explore Models
Model Inlet
NPT		 Discharge
NPT		 Pressure
Range		 Temp.
Range		 Max HP Max gal/hr
6540310 1/2" 3/8" 85-175 PSI 33-140°F 350 55
6540320 3/4" 1/2" 85-175 PSI 33-140°F 1000 110

Strainer with Ball Valve

Model Inlet
NPT		 Outlet
NPT		 Max
Pressure		 Temp
Range		 Mesh
Size
6540020 1/2" or 1/4" 1/2" 0-220 PSI 33-140°F 2.5–3
6540040 1/2" or 1/4" 3/4" 0-220 PSI 33-140°F 2.5–3
6540315 1/2" 1/2" 0-220 PSI 33-140°F 2.5–3
6540325 3/4" 3/4" 0-220 PSI 33-140°F 2.5–3

Low Ambient Heater

Model Voltage Cord
Length		 Current Connection
6540330120 120 Volts 6 Feet 120 Watts NPT Threads

Nitrogen Generation Systems

TN2 Series Membrane Nitrogen Generators

TN2 Series Membrane Nitrogen Generators

  • Flow Rate Range: 0.5-15,000 SCFH
  • Adaptable across various industries from food packaging to metal processing
  • Zero maintenance with PRISM® technology for hassle-free operation
  • Built for harsh conditions with reliable performance in challenging environments
Download Brochure Explore Models

TN2 Total Flow Rates

(SCFH) @ 100 PSIG, 80°F Inlet Air Conditions

Total Series 95% Purity 99.5% Purity
Inlet Air Outlet N2 Inlet Air Outlet N2
TN2T0800 36.4 15.6 23.0 4.0
TN2T0900 62.3 25.8 39.7 5.9
TN2T1000 156.0 66.7 101.0 17.6
TN2T1100 264.0 113.0 171.0 29.7
TN2T1200 468.0 200.0 303.0 52.6
TN2T1300 768.0 328.0 497.0 86.5
TN2T1400 936.0 400.0 606.0 105.2
TN2T1500 1536 656.0 994.0 173.0
TN2T1600 1937 827.0 1253 218.0
TN2T1700 2304 984.0 1491 259.5
TN2T1800 3072 1312 1988 346.0
TN2T1900 3874 1654 2506 436.0
TN2T2000 4608 1968 2982 519.0
TN2T2100 5811 2481 3759 654.0
TN2T2200 7748 3308 5012 872.0
TN2T2300 9685 4135 6265 1090
TN2T2400 11622 4962 7518 1306

TN2H Total Flow Rates

(SCFH) @ 100 PSIG, 80°F Inlet Air Conditions

TN2H Series 95% Purity 99.5% Purity
Inlet Air Outlet N2 Inlet Air Outlet N2
TN2H1200 974 402 661 108
TN2H1300 1569 644 1065 172
TN2H1400 1948 804 1322 216
TN2H1500 3138 1288 2130 344
TN2H1700 4707 1932 3195 516
TN2H1800 6276 2576 4260 688
TN2H2000 9414 3864 6390 1032

TN2 Basic Flow Rates

(SCFH) @ 100 PSIG, 80°F Inlet Air Conditions*

TN₂ Basic Series 95% Purity 99.5% Purity
Inlet Air Outlet N2 Inlet Air Outlet N2
TN2B0800 22.9 10.6 13.7 3.0
TN2B0900 38.2 17.6 23.2 4.4
TN2B1000 97.1 46.0 60.0 13.2
TN2B1100 164.0 77.7 102.0 22.3
TN2B1200 291.0 138.0 180.0 39.5
TN2B1300 478.0 226.0 295.0 64.8
TN2B1400 582.0 276.0 360.0 79.0
TN2B1500 956.0 452.0 590.0 129.6
TN2B1600 1204 570.0 744.0 163.0
TN2B1700 1434 678.0 885.0 194.4
TN2B1800 1912 904.0 1180 259.2
TN2B1900 2408 1140 1488 326.0
TN2B2000 2868 1356 1770 388.8
TN2B2100 3612 1710 2232 489.0
TN2B2200 4816 2280 2976 652.0

TN2BH Total Flow Rates

(SCFH) @ 100 PSIG, 80°F Inlet Air Conditions

TN₂BH Series 95% Purity 99.5% Purity
Inlet Air Outlet N2 Inlet Air Outlet N2
TN2BH1210 528 254 329 75
TN2BH1220 1056 508 658 150
TN2BH1230 1584 762 987 225
TN2BH1240 2112 1016 1316 300
TN2BH1310 849 407 530 121
TN2BH1320 1698 814 1060 242
TN2BH1330 2547 1221 1590 363
TN2BH1340 3396 1628 2120 484

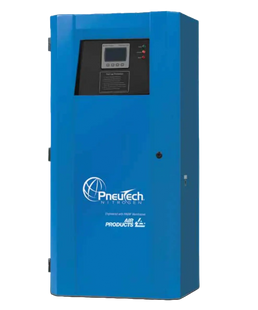

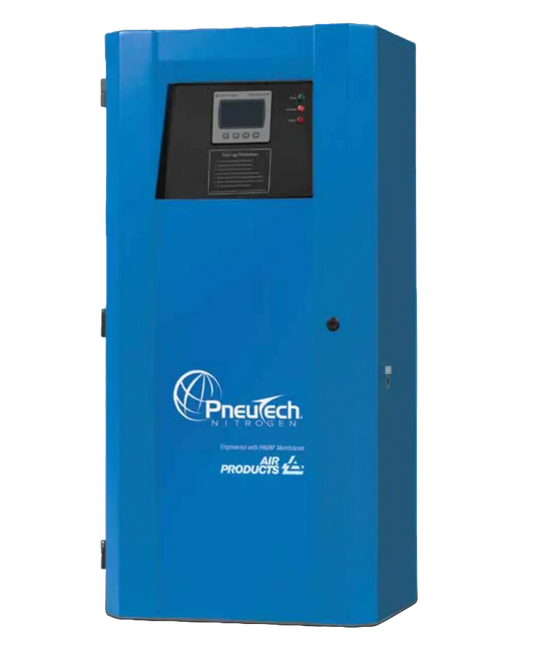

TNX Series Expandable Membrane Nitrogen Generators

TNX Series Expandable Membrane Nitrogen Generators

  • Scalable and efficient solution for on-site nitrogen generation
  • Expandable membrane technology grows with your business needs
  • Compact footprint for space-efficient installation and integration
  • Exceptional flow rates for high-demand industrial applications
Download Brochure Explore Models

TNX Non-Heated Flow Rates

(SCFH) @ 80°F Inlet Air Conditions*

TNX Non-Heated 95% Purity 99.5% Purity
Inlet Air Outlet N₂ Inlet Air Outlet N₂
TNX1010 90.2 43.3 55.4 12.5
TNX1020 180.4 86.6 110.8 25.0
TNX1030 270.6 129.9 166.2 37.5
TNX1040 360.8 173.2 221.6 50.0
TNX1110 153.0 73.2 93.7 21.2
TNX1120 306.0 146.4 187.4 42.4
TNX1130 459.0 219.6 281.1 63.6
TNX1140 612.0 292.8 374.8 84.8
TNX1210 270.0 130.0 166.0 37.6
TNX1220 540.0 260.0 332.0 75.2
TNX1230 810.0 390.0 498.0 112.8
TNX1240 1080.0 520.0 664.0 150.4

TNX Heated Flow Rates

(SCFH) @ 100 PSIG, 105°F, 100% RH Inlet Air Conditions

TNX Heated 95% Purity 99.5% Purity
Inlet Air Outlet N₂ Inlet Air Outlet N₂
TNX1010 156.0 66.7 101.0 17.6
TNX1020 312.0 133.4 202.0 35.2
TNX1030 468.0 200.1 303.0 52.8
TNX1040 624.0 266.8 404.0 70.4
TNX1110 264.0 113.0 171.0 29.7
TNX1120 528.0 226.0 342.0 59.4
TNX1130 792.0 339.0 513.0 89.1
TNX1140 1056.0 452.0 684.0 118.8
TNX1210 468.0 200.0 303.0 52.6
TNX1220 936.0 400.0 606.0 105.2
TNX1230 1404.0 600.0 909.0 157.8
TNX1240 1872.0 800.0 1212.0 210.4

TNXH Heated Flow Rates

(SCFH) @ 100 PSIG, 105°F, 100% RH Inlet Air Conditions

TNXH Heated 95% Purity 96% Purity 97% Purity 98% Purity 99% Purity 99.5% Purity
Inlet Air Outlet N₂ Inlet Air Outlet N₂ Inlet Air Outlet N₂ Inlet Air Outlet N₂ Inlet Air Outlet N₂ Inlet Air Outlet N₂
TNXH1210 974 402 908 338 844 276 778 215 707 149 661 108
TNXH1220 1948 804 1816 676 1688 552 1556 430 1414 296 1322 213
NGN Series Twin Tower PSA Nitrogen Generators

NGN Series Twin Tower PSA Nitrogen Generators

  • Twin-tower PSA technology for consistent high-quality nitrogen supply
  • Extended service life with premium Carbon Molecular Sieve (10+ years)
  • Optimized efficiency with low pressure drop and minimal operational costs
  • Generously sized adsorption towers ensure continuous high-purity flow
Download Brochure Explore Models

NGN Series Nitrogen Generators

N2 Output Design Capacity

Model 95.000% 96.000% 97.000% 98.000% 99.000% 99.500% 99.900% 99.950% 99.990% 99.999%
SCFM NCHM SCFM NCHM SCFM NCHM SCFM NCHM SCFM NCHM SCFM NCHM SCFM NCHM SCFM NCHM SCFM NCHM SCFM NCHM
NGN0003 2.6 4.2 2.4 3.8 2.1 3.4 1.8 2.9 1.4 2.3 1.3 2.0 0.5 1.5 0.8 1.3 0.6 1.0 0.3 0.5
NGN0005 6.2 10.0 5.7 9.1 5.0 8.0 4.4 7.0 3.5 5.5 3.0 4.9 2.2 3.5 1.9 3.1 1.4 2.2 0.7 1.2
NGN0010 8.9 14.2 8.1 12.9 7.1 11.4 6.2 9.9 4.9 7.9 4.3 6.9 3.1 5.0 2.7 4.4 2.1 3.3 1.0 1.7
NGN0015 15.9 25.6 14.5 23.3 12.8 20.5 11.1 17.9 8.9 14.2 7.8 12.5 5.7 9.1 4.9 7.9 3.7 5.9 1.9 3.0
NGN0020 22.3 35.8 20.4 32.7 17.9 28.8 15.6 25.1 12.4 19.9 10.9 17.5 7.9 12.7 6.9 11.1 5.2 8.3 2.6 4.2
NGN0025 26.6 42.7 24.3 38.9 21.4 34.3 18.6 29.9 14.8 23.7 13.0 20.9 9.5 15.2 8.3 13.3 6.2 9.9 3.1 5.0
NGN0030 32.9 52.7 30.0 48.1 26.4 42.3 23.0 36.9 18.3 29.3 16.1 25.8 11.7 18.7 10.2 16.4 7.6 12.2 3.8 6.2
NGN0050 49.8 80.0 45.4 72.9 40.0 64.2 34.9 56.0 27.7 44.5 24.4 39.2 17.7 28.4 15.5 24.8 11.6 18.6 5.8 9.4
NGN0060 63.3 101.7 57.7 92.7 50.9 81.6 44.3 71.2 35.2 56.5 31.0 49.8 22.5 36.1 19.7 31.5 14.7 23.6 7.4 11.9
NGN0080 81.9 131.4 74.7 119.8 65.7 105.5 57.3 92.0 45.5 73.1 40.1 64.3 29.1 46.7 25.4 40.8 19.0 30.5 9.6 15.4
NGN0100 102.2 164.0 93.2 149.5 82.0 131.7 71.5 114.8 56.8 91.2 50.0 80.3 36.3 58.3 31.7 50.9 23.7 38.0 11.9 19.2
NGN0150 150.2 241.1 137.0 219.9 120.6 193.6 105.2 168.8 83.5 134.0 73.5 118.0 53.4 85.7 46.6 74.8 34.9 55.9 17.6 28.2
NGN0200 216.3 347.2 197.2 316.6 173.7 278.8 151.4 243.1 120.3 193.0 105.9 170.0 71.9 115.4 67.1 107.7 50.2 80.6 25.3 40.6
NGN0250 259.6 416.7 236.7 379.9 208.4 334.6 181.7 291.7 144.3 231.6 127.1 203.9 92.3 148.1 80.5 129.3 53.5 85.9 30.4 48.7
NGN0300 302.9 486.1 276.1 443.2 243.2 390.3 212.0 340.3 168.4 270.2 148.2 237.9 107.6 172.8 94.0 150.8 70.3 112.8 35.4 56.8
NGN0350 353.3 567.2 322.2 517.1 283.7 455.4 247.3 397.0 196.4 315.3 172.9 277.6 125.6 201.6 109.6 176.0 82.0 131.6 41.3 66.3
NGN0400 412.2 661.7 376.0 603.5 331.0 531.3 288.6 463.2 229.2 367.8 201.8 323.9 146.5 235.2 127.9 205.3 95.6 153.5 48.2 77.4
NGN0500 473.2 759.6 431.5 692.6 380.0 609.9 331.3 531.7 263.1 422.2 231.6 371.8 168.2 270.0 146.8 235.7 109.8 176.2 55.3 88.8
NGN0600 584.1 937.6 532.6 854.8 469.0 752.8 408.9 656.3 324.7 521.2 285.9 458.9 207.6 333.2 181.2 290.9 135.5 217.5 68.3 109.6
NGN0700 681.4 1094.0 621.3 997.3 546.2 878.3 477.0 765.7 378.8 608.0 333.5 535.4 208.9 335.3 211.4 339.4 158.1 253.8 79.7 127.9
NGN1100 1104.0 1772.0 1007.0 1616.0 886.6 1423.0 772.9 1241.0 613.8 985.2 540.4 867.5 392.5 629.9 342.6 549.9 256.2 411.2 129.1 207.2
NGN1500 1427.0 2290.0 1301.0 2088.0 1146.0 1839.0 998.8 1603.0 793.1 1273.0 698.3 1121.0 507.1 814.0 442.7 710.6 331.0 531.3 166.8 267.8
Air/N2 ratio 1.9 1.9 2.0 2.2 2.4 2.6 3.2 3.5 4.6 6.4

NGN Series Nitrogen Generators

Dimensional Specifications

Model Connections Height Width Depth Weight
Inlet Outlet Exhaust mm in mm in mm in kg lbs
NGN0003 3/8" 1/4" 3/8" 1016 40 457 18 356 14 44 100
NGN0005 3/8" 3/8" 3/4" 1600 63 737 29 610 24 67 150
NGN0010 1/2" 1/2" 3/4" 1524 60 914 36 711 28 111 250
NGN0015 3/4" 1/2" 1" 1626 64 978 39 711 28 169 380
NGN0020 1" 3/4" 1" 2032 80 978 39 711 28 200 450
NGN0025 1" 3/4" 1.5" 1676 66 991 39 711 28 231 520
NGN0030 1" 1" 1.5" 2083 82 1118 44 787 31 244 550
NGN0050 1.5" 1" 1.5" 1803 71 1245 49 889 35 288 650
NGN0060 1.5" 1" 1.5" 2134 84 1372 54 914 36 346 780
NGN0080 1.5" 1.5" 2" 1905 75 1448 57 1067 42 586 1320
NGN0100 1.5" 1.5" 2" 2159 85 1473 58 1067 42 665 1500
NGN0150 2" 1.5" 2.5" 2845 112 1829 72 1321 52 932 2100
NGN0200 2" 2" 2.5" 2845 112 1880 74 1321 52 1198 2700
NGN0250 2.5" 2" 3" 3150 124 1880 74 1321 52 1331 3000
NGN0300 2.5" 2" 3" 3048 120 2184 86 1321 52 1597 3600
NGN0350 2.5" 2" 3" 3075 121 2206 87 1472 58 1909 4200
NGN0400 3" 2.5" 3" 3172 125 2305 91 1529 60 2182 4800
NGN0500 3" 2.5" 4" 3262 128 2398 94 1583 62 2500 5500
NGN0600 3" 2.5" 4" 3403 134 2547 100 1668 66 3068 6750
NGN0700 4" 3" 4" 3511 138 2662 105 1733 68 3568 7850
NGN1100 4" 3" 4" 3870 152 3056 120 1954 77 5727 12600
NGN1500 6" 4" 6" 4075 160 3288 129 2083 82 7364 16200

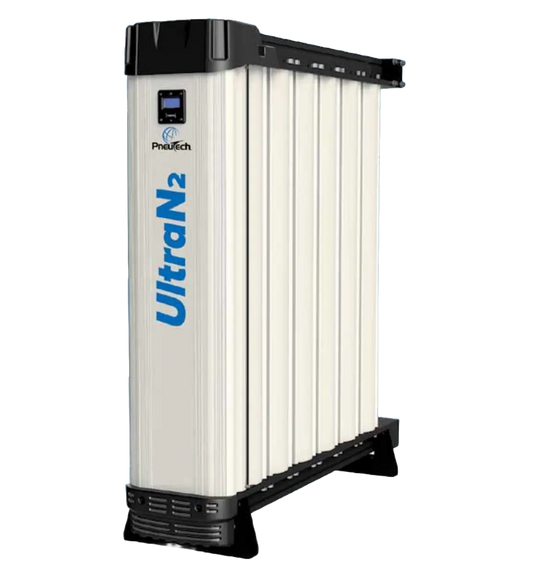

UltraN2 High-Purity Series PSA Nitrogen Generators

UltraN2 High-Purity Series PSA Nitrogen Generators

  • Achieve up to 99.999% nitrogen purity for critical applications
  • Energy-saving Econo-Mode automatically adjusts power consumption
  • Maintenance simplified with durable valves and two-year warranty
  • Designed for high-tech industries requiring ultimate nitrogen purity
Download Brochure Explore Models

UltraN2 High PurityPSA Nitrogen Generators

Technical Specifications

Model Rated Outlet Flow (1) Nitrogen purity at the outlet (maximum oxygen content)* Dimensions (in) Approx. Weight
(lbs)
scfh 100.00%
(10 ppm)		 100.00%
(50 ppm)		 99.99%
(100 ppm)		 99.98%
(250 ppm)		 99.95%
(500 ppm)		 99.90%
-0.10%		 99.50%
-0.50%		 99%
1%		 98%
2%		 97%
3%		 96%
4%		 95%
5%		 Height Width Length
NGU0200 scfh 49 71 81 95 109 127 184 205 258 293 335 364 47.8 15.7 23 375
NGU0400 scfh 99 141 162 191 219 254 367 410 516 586 671 727 47.8 15.7 29.6 437
NGU0600 scfh 148 212 244 286 328 381 551 614 773 879 1006 1091 47.8 15.7 36.2 560
NGU0800 scfh 180 254 297 353 403 466 667 742 932 1070 1218 1324 71.3 15.7 29.6 589
NGU1200 scfh 270 381 445 529 604 699 1001 1112 1398 1605 1828 1986 71.3 15.7 36.2 780
NGU1500 scfh 360 509 593 706 805 932 1335 1483 1865 2140 2437 2649 71.3 15.7 42.8 972
NGU2200 scfh 540 763 890 1058 1208 1398 2002 2225 2797 3210 3655 3973 71.3 15.7 55.9 1356
NGU3000 scfh 720 1017 1187 1411 1610 1865 2670 2966 3729 4280 4873 5297 71.3 15.7 69.3 1739
NGU3500 scfh 828 1170 1365 1623 1852 2144 3070 3411 4289 4922 5604 6092 71.3 15.7 82.5 2123
NGU4000 scfh 962 1358 1584 1884 2150 2489 3564 3960 4979 5714 6506 7072 71.3 15.7 95.6 2507
Let’s Talk About Your Air System

Let’s Talk About Your Air System

Get the compressed air solution that matches your exact requirements. PneuTech specialists will help you select the right equipment, provide competitive pricing, and ensure fast delivery to keep your operations running efficiently.

Contact us

Why PneuTech Works Better with Fluid-Aire Dynamics Behind It

PneuTech, our affiliated brand specializing in industrial compressed air solutions, delivers a full range of equipment and technologies supported by Fluid-Aire Dynamics.
Authorized Distributor Excellence
PneuTech, our affiliated brand specializing in industrial compressed air solutions, delivers a full range of equipment and technologies supported by Fluid-Aire Dynamics.
From initial consultation to installation and ongoing maintenance, we handle every aspect of your compressed air system.
Complete System Integration
From initial consultation to installation and ongoing maintenance, we handle every aspect of your compressed air system.
Our certified technicians provide round-the-clock support to keep your operations running smoothly.
24/7 Emergency Service
Our certified technicians provide round-the-clock support to keep your operations running smoothly.
We specialize in reducing energy costs through proper system sizing, VSD technology, and advanced controls.
Energy Efficiency Experts
We specialize in reducing energy costs through proper system sizing, VSD technology, and advanced controls.
We provide operator training and maintenance programs to maximize your equipment investment.
Comprehensive Training
We provide operator training and maintenance programs to maximize your equipment investment.
Extensive parts inventory and multiple service locations ensure rapid response times.
Local Inventory & Fast Delivery
Extensive parts inventory and multiple service locations ensure rapid response times.
Why PneuTech Works Better with Fluid-Aire Dynamics Behind It

Frequently Asked Questions About PneuTech

What makes your PneuTech brand stand out from other compressor manufacturers?

PneuTech focuses on energy efficiency with their VSD technology offering up to 85% turn-down capacity, Industry 4.0 connectivity, and some of the longest warranties in the industry (up to 10 years on RKHD series).

How much energy can I save with a PneuTech VSD compressor?

VSD compressors typically provide 20-35% energy savings compared to fixed-speed units, with the exact savings depending on your air demand profile and operating conditions.

What's the horsepower range available from PneuTech?

PneuTech offers solutions from 4HP to 480HP, covering everything from small workshops to large industrial facilities.

How reliable are PneuTech compressors?

PneuTech compressors are built for 100% duty cycle operation with advanced cooling systems, oversized components, and robust construction designed for continuous industrial use.

What air treatment options are available?

PneuTech offers complete air treatment including refrigerated dryers, desiccant dryers, filtration systems, oil/water separators, and nitrogen generation equipment.

Do you provide installation and service?

Yes, our in-house team at Fluid-Aire Dynamics fully supports PneuTech equipment with complete installation, commissioning, preventive maintenance, and 24/7 emergency service support.

What industries use PneuTech equipment?

PneuTech serves automotive, food processing, pharmaceuticals, manufacturing, textiles, and virtually any industry requiring reliable compressed air.

How do I know which PneuTech model is right for my application?

Our certified technicians will conduct a comprehensive air audit to determine the optimal equipment configuration for your specific needs and usage patterns.

Transform Your Compressed Air Operations Today

Stop losing money on inefficient compressed air equipment. Our experts at Pneutech are ready to help you configure the perfect solution for your facility. Get competitive pricing, fast delivery, and professional installation support.

Serving industrial customers throughout the Midwest with locations in Chicago, Milwaukee, Minneapolis, Detroit, and Philadelphia

Our Locations

Chicago

225 Spring Lake Drive,
Itasca,
IL 60143

847-678-8388

Milwaukee

9602 Franklin Dr.,
Franklin WI 53132

414-273-1994

Minneapolis

14250 Judicial Rd.,
Burnsville MN 55306

612-246-3432

Detroit

50469 Pontiac Trail,
Wixom MI 48393

248-775-1459

Philadelphia

36 Mountain View Road,
Morgantown PA 19543

610-913-9100
