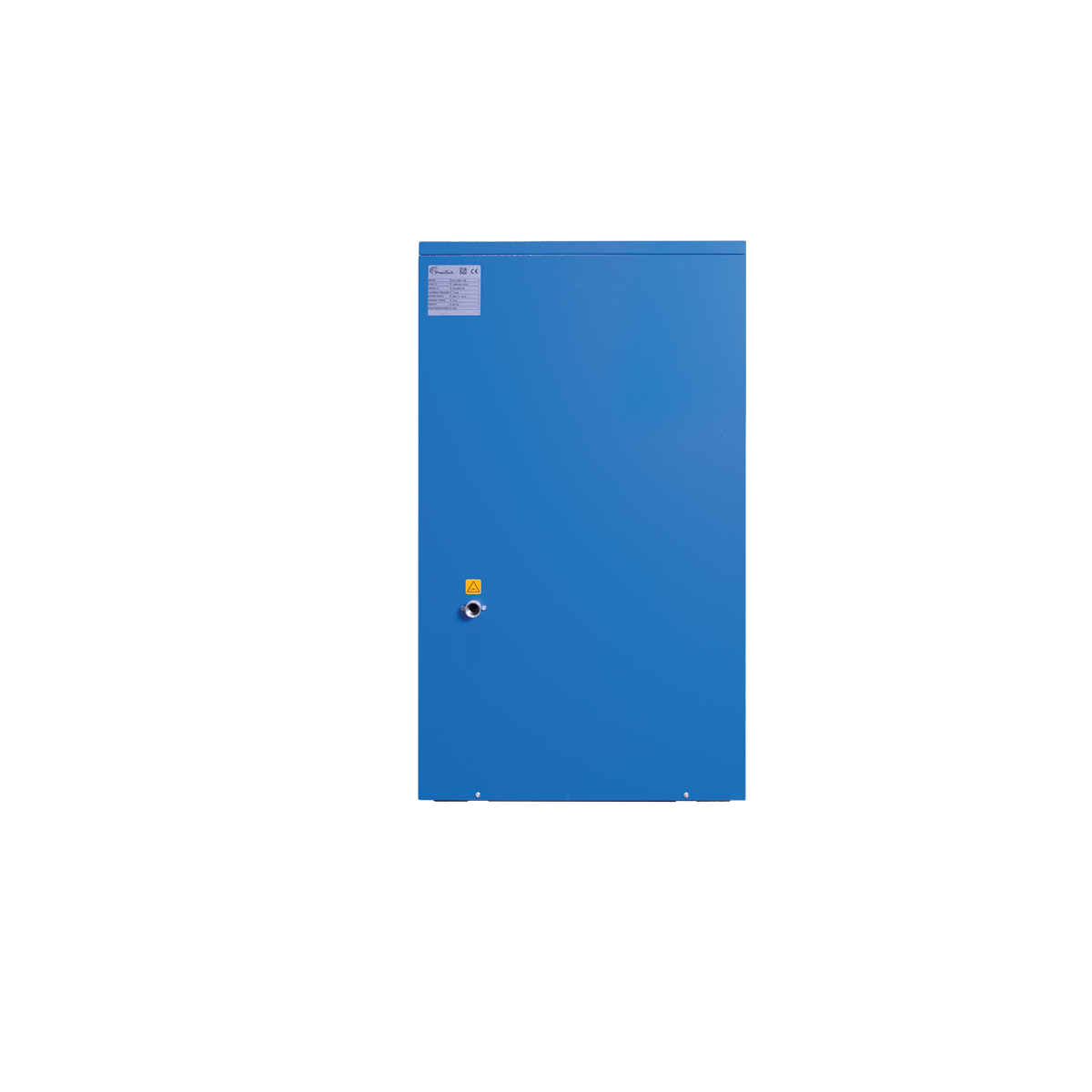

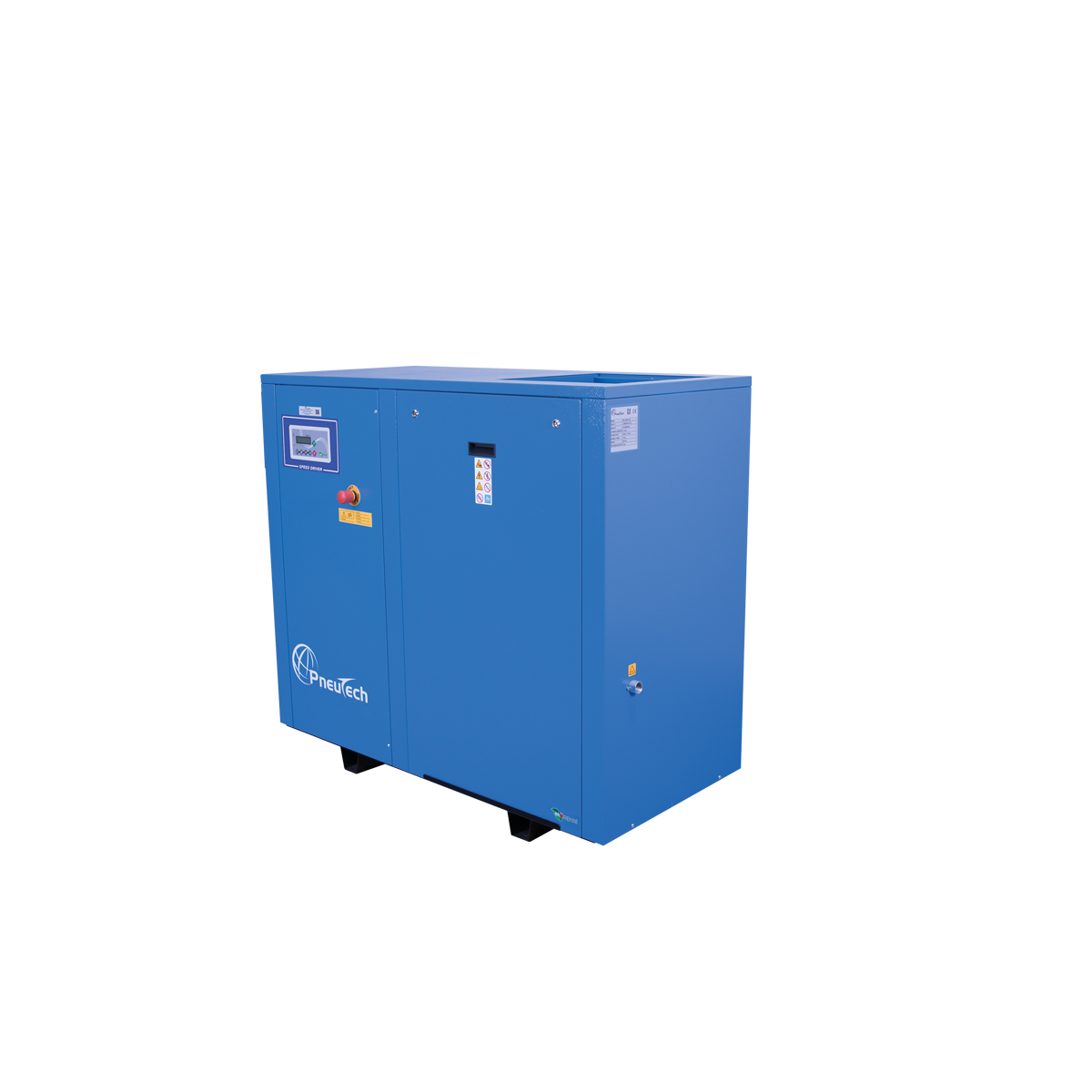

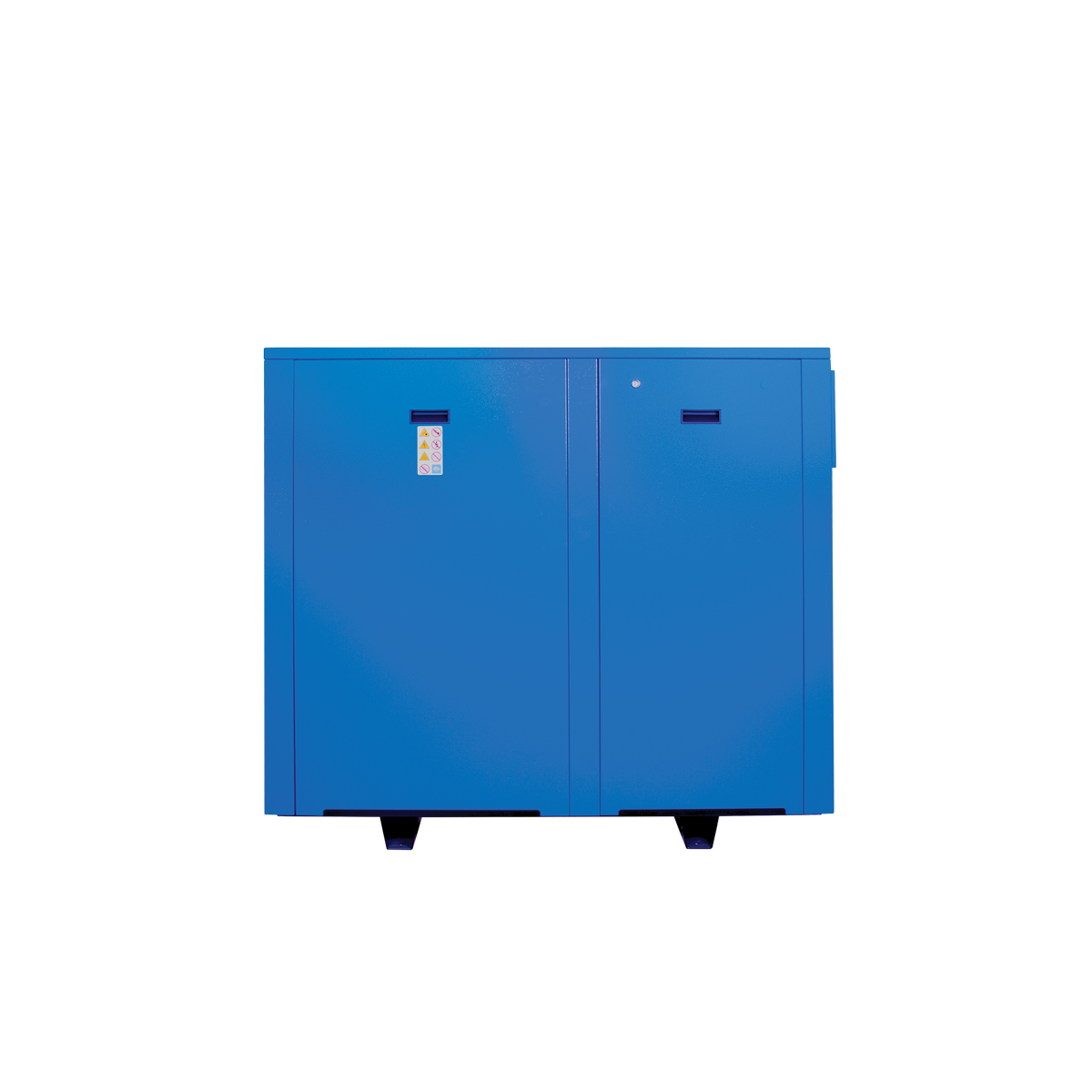

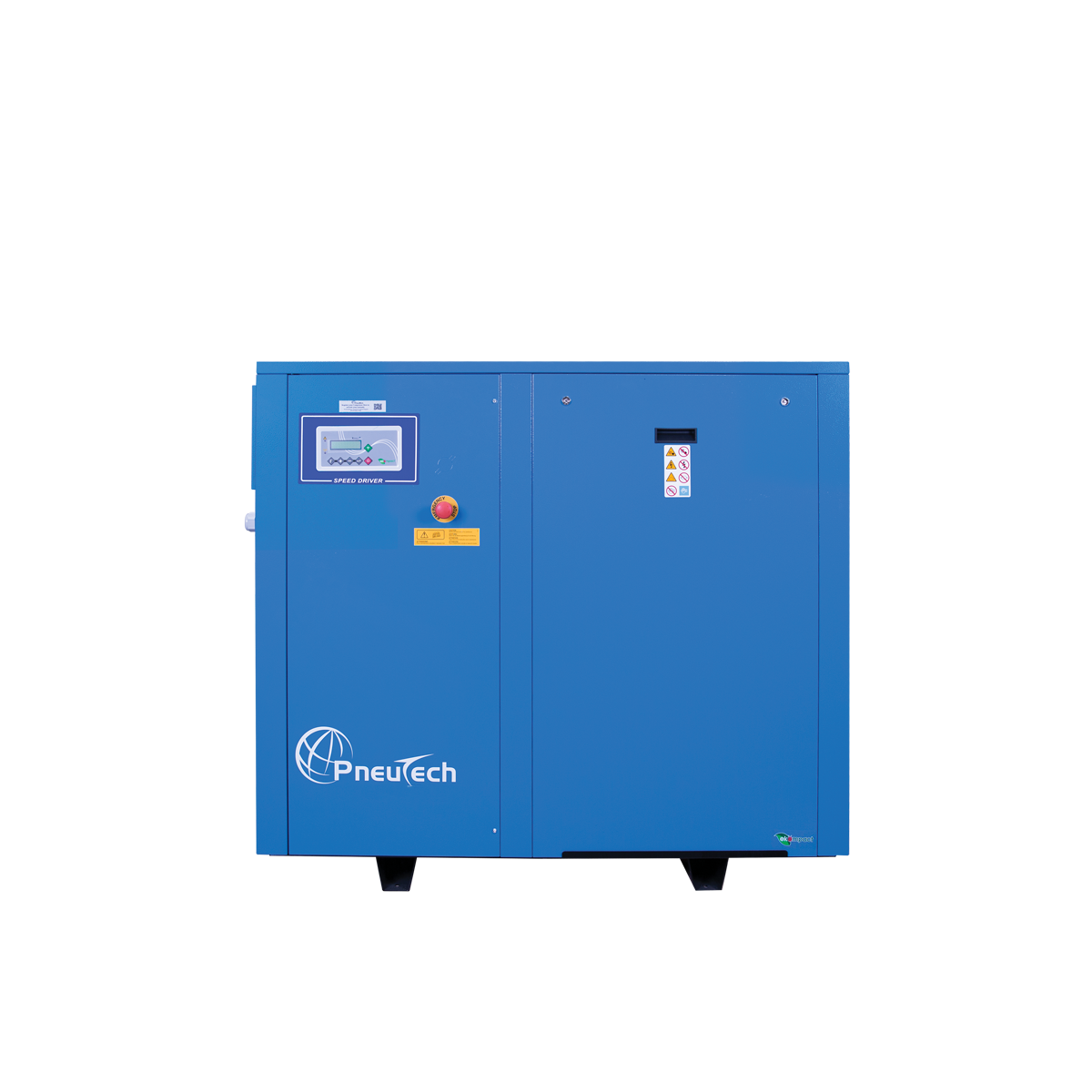

PneuTech Variable Speed Drive Rotary Screw Air Compressor, 25 HP, 115 PSI, Based Mounted, 208/230-3-60

Model #RK-25VSD-115B-L
CFM 97
dBA 68
Dimensions LxWxH (in) 66x30x56
HP 25
kW 18
NPT 1-1/4
Phase Three
PSI 115
Voltage 208/230
Weight(lbs) 794
Similar to
  • Ingersoll Rand RS18neA115
  • Curtis NXV15-125

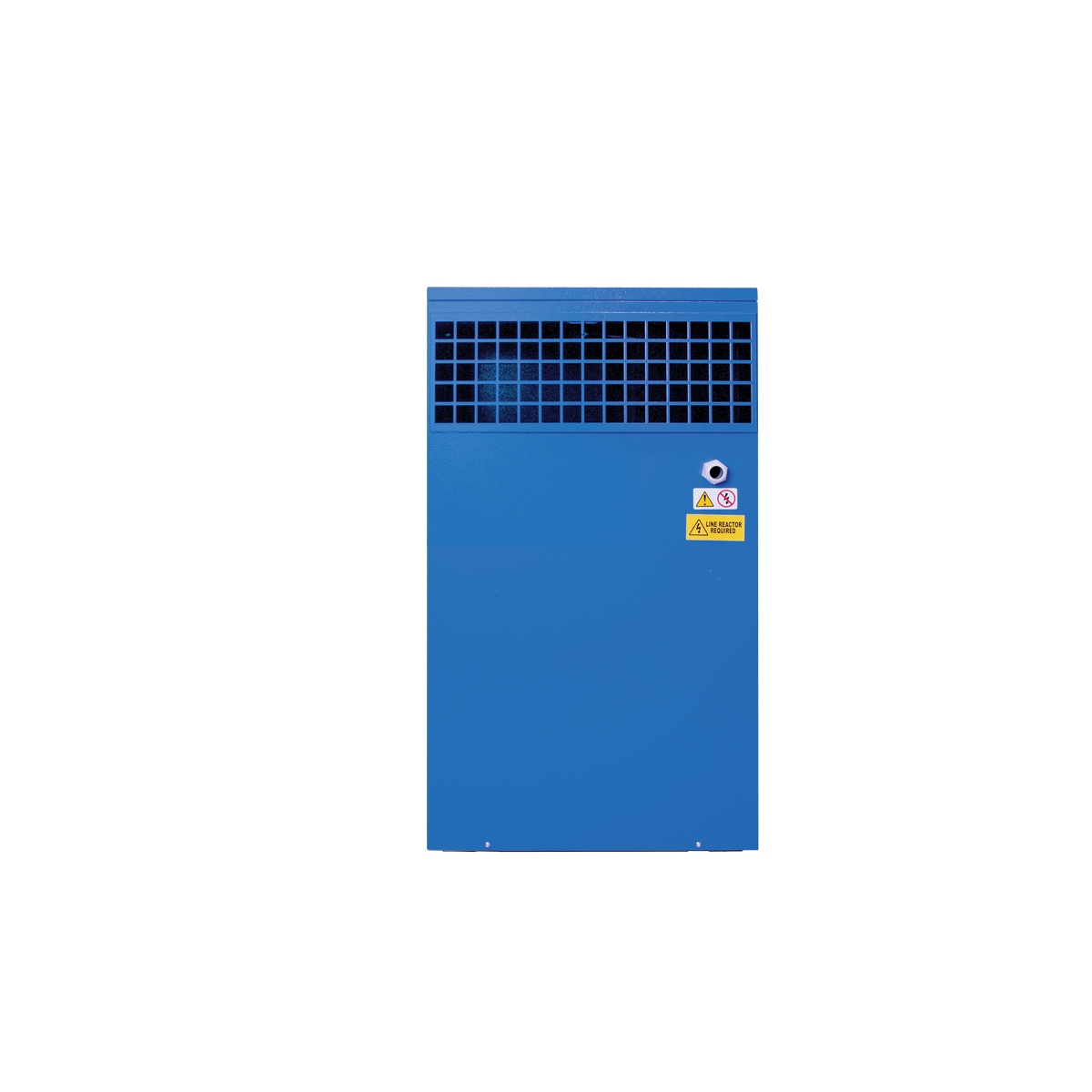

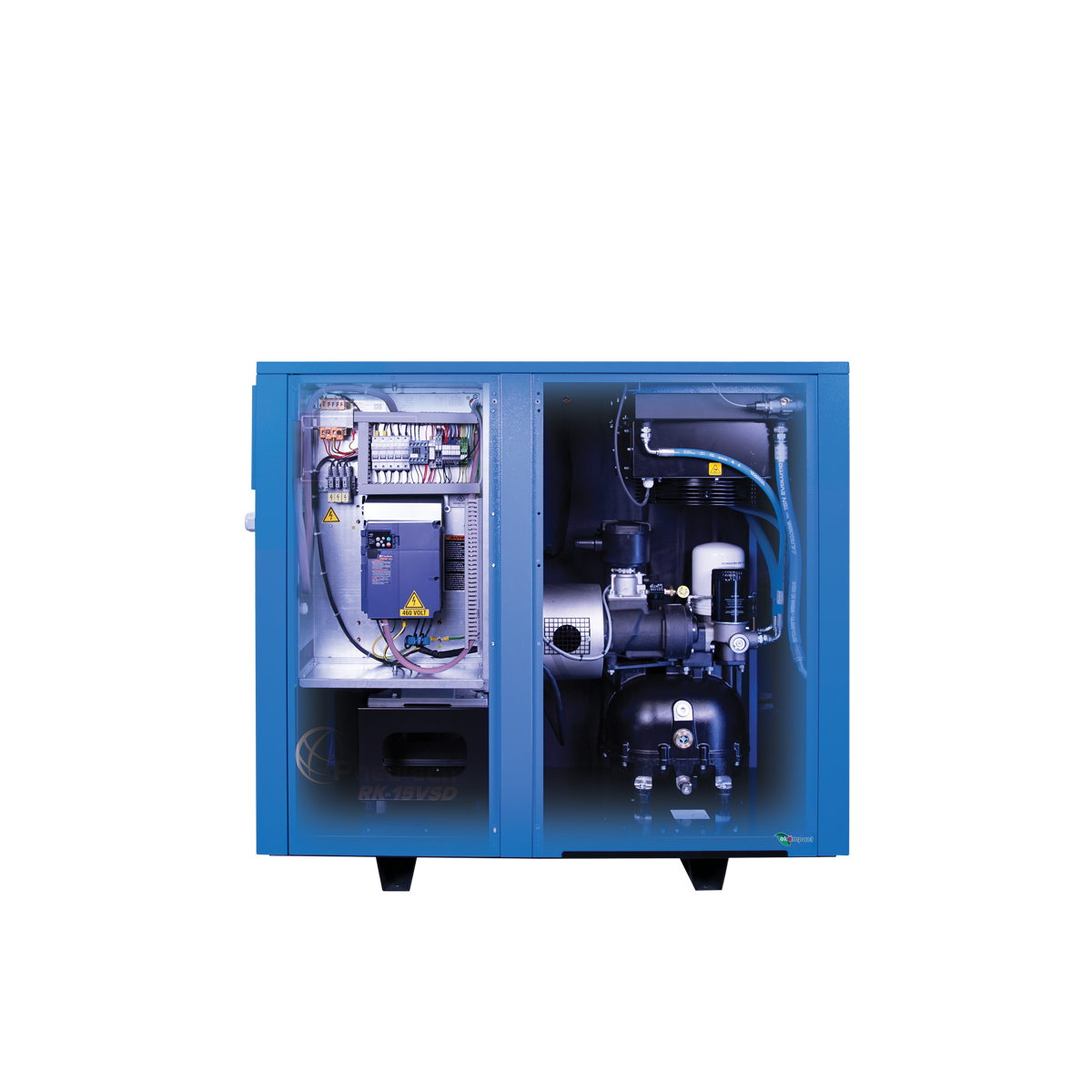

Vented Electrical Cabinet

Vented Electrical Cabinet

Vented for maximum cooling of the drive (conveniently accessed from the front of the machine)

Oversized Air/Oil Cooler

Oversized Air/Oil Cooler

Easy-to-access and oversized to allow for higher ambient operating temperatures

Spin-on Filtration

Spin-on Filtration

Spin-on air/oil separators and oil filtration allow for quick and effortless replacement

Condensate Trap

Condensate Trap

The standard condensate trap, located at the discharge of the air cooler removes bulk water. Includes electric solenoid drain valve.

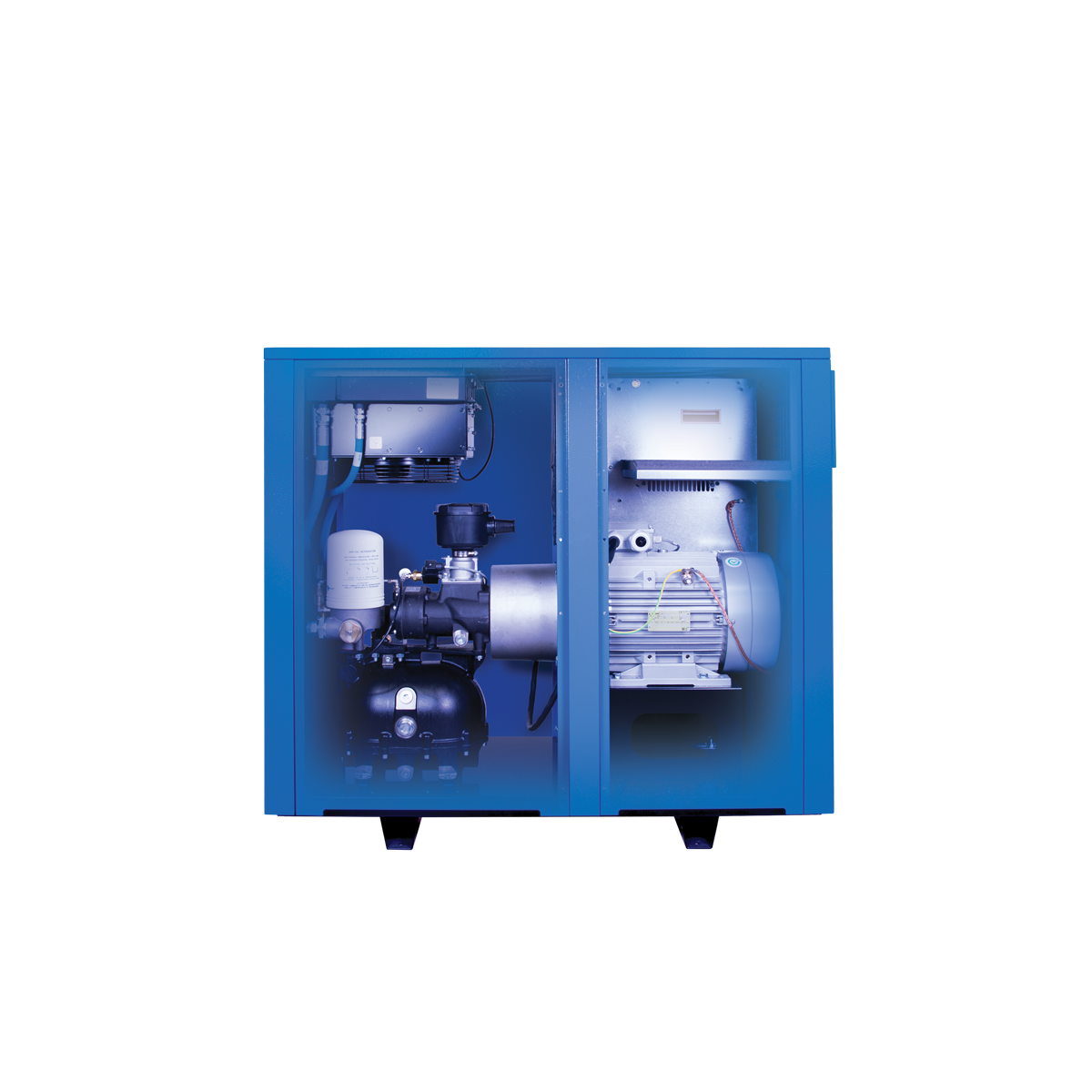

Low RPM Air End Assembly

Low RPM Air End Assembly

The oversized air end assembly allows for a low RPM design which provides reduced maintenance,cooler running conditions, and an extended life expectancy.

Direct Drive Design

Direct Drive Design

Direct drive eliminates gear-sets which increases efficiency and reduces noise and vibration levels

Integrated Oil Sump Tank

Integrated Oil Sump Tank

The oil sump tank is integrated directly with the air end, filtration, thermal valve, and MPCV. This feature reduces hose connections and lessens the chance for oil leakage, and provides a compact design.

TEFC motor (totally enclosed fan-cooled)

TEFC motor (totally enclosed fan-cooled)

As standard, all RK-VSD units come packaged with a TEFC motor. This feature protects the motor against dirty environments which increases bearing life and the overall longevity of the compressor.
