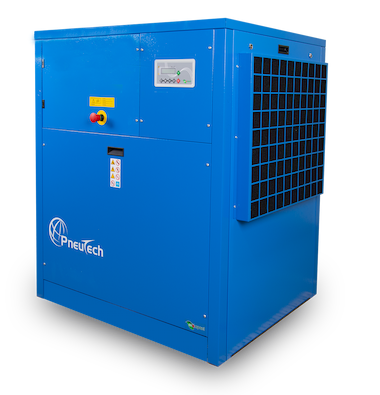

Pneutech RK-30F-125B RK Series 25HP–50HP Fixed Speed - Base Mounted

$18,000.00
/ each
CFM 122
dBA 69
Dimensions LxWxH (in) 42x34x49
HP 30
kW 22
PSI 125
Tank (gal) NA
Similar to
  • Gardner Denver L22
  • Quincy QGS-30
  • Quincy QGD-30
  • Quincy QSI-40
  • Quincy QSI-40C
  • Elgi EN22-125
  • Elgi EG22-125
  • Ingersoll Rand RS22i-A125
  • Boge C30-125
  • Boge C22-2N
  • Kaishan KRSB30-115
  • Chicago Pneumatic QRS30-125
  • Atlas Copco G22-125
  • Atlas Copco GA22-125
  • Atlas Copco GA22+125
  • Kaiser AS30-125
  • Kaiser ADS30-125
  • Sullair S-2200
  • Sullair ST-2208
  • Curtis NXB22-125
Belt Drive Design

Belt Drive Design

The belt drive design reduces vibration by eliminating gearsets and allows for convenient servicing of either the air end or motor. Also includes a tensioning mechanism that simplifies belt changes and tensioning.

Wye Delta Start

Wye Delta Start

The wye delta start is a method of reduced amperage start up that comes standard on all RK machines. It saves energy and increases the life of the drive components including the pump, motor, and drive belt.

Safety Switch

Safety Switch

The lock-out switch ensures safe servicing and power isolation when compressor is not in use.

Easily Removable Panels

Easily Removable Panels

With removable enclosure panels, the RK series units are easy to service in all areas (maintaining filtration and oil, or servicing one of the major components). This efficiency keeps downtime to a minimum.

Electronic Controller

Electronic Controller

The electronic controller allows for user friendly parameter modifications and running status monitoring. It comes standard on all RK machines and allows you to change load/unload pressures, off delay timers, wye-delta start times, monitor running temperatures, differential pressures across filtration, and much more!

Minimal Hose Design

Minimal Hose Design

The air end is directly connected to the oil sump assembly and multiple hoses are eliminated on our RK compressors. This reduces the possibility for leakage as well as the restrictions to the flow of oil and air.

Cabinet Filtration

Cabinet Filtration

A conveniently accessible cabinet filter is standard on all RK Series air compressors. This filter is washable for prolonged life and reduces maintenance on the complete machine, especially the air filter.

Integrated Dryer Option

Integrated Dryer Option

Integrating the dryer into the compressor saves time, money, and floor space. All RK Fixed Speed 5-40 HP compressors are available with or without a dryer. This dryer is unique because it has a single point condensate drain, digital dewpoint meter, and is easily serviced.

Oversized Air-Oil Separator Tank

Oversized Air-Oil Separator Tank

The oversized air-oil separator tank and element allows for effective 3 stage separation, less than 3ppm oil carry over and less than 0.02 bar pressure drop. The highest air quality isassured with renowned Mann filtration.

Compact Footprint and Ease-of-Rigging

Compact Footprint and Ease-of-Rigging

Built in fork truck slots on all RK series air compressors allow for safe and easy rigging. The compact design allows more installation flexibility.
