$353.00
| CFM | 80 |
|---|---|
| dBA | 65 |
| Dimensions LxWxH (in) | 53x28x48 |
| HP | 20 |
| kW | 15 |
| NPT | 3/4" |
| Phase | Three |
| PSI | 115 |
| Voltage | 460 |
| Weight(lbs) | 728 |
Similar to
- Gardner Denver L15RS-115
- Quincy QGDV-20
- Elgi EN15V-125
- Ingersoll Rand RS15N-A115
- Boge C15-2LFN-125
- Kaishan KRSD20-115
- Atlas Copco GA15VSD+
- Kaiser SFC15-125
- Sullair S-1500eV
- Curtis GVS-20

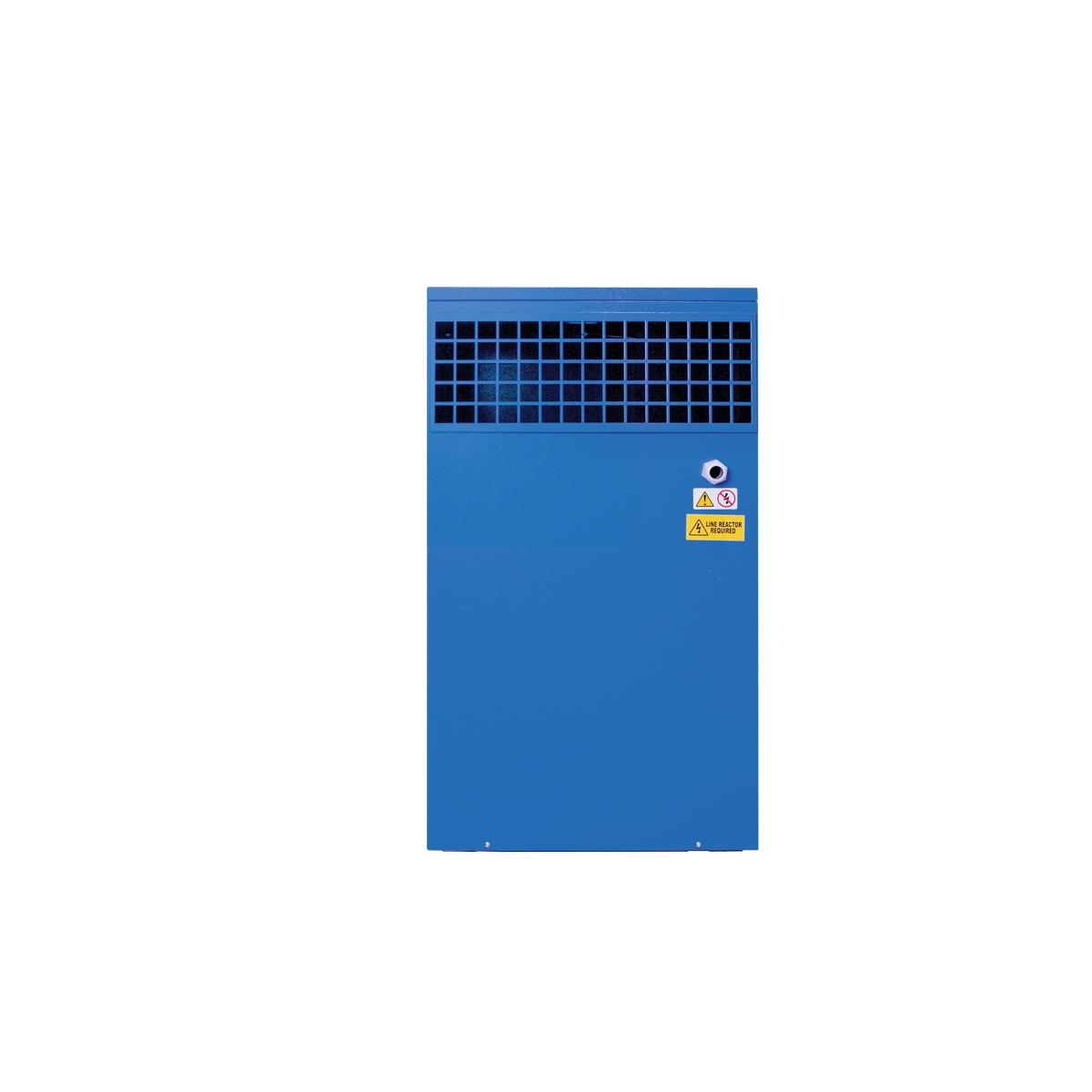

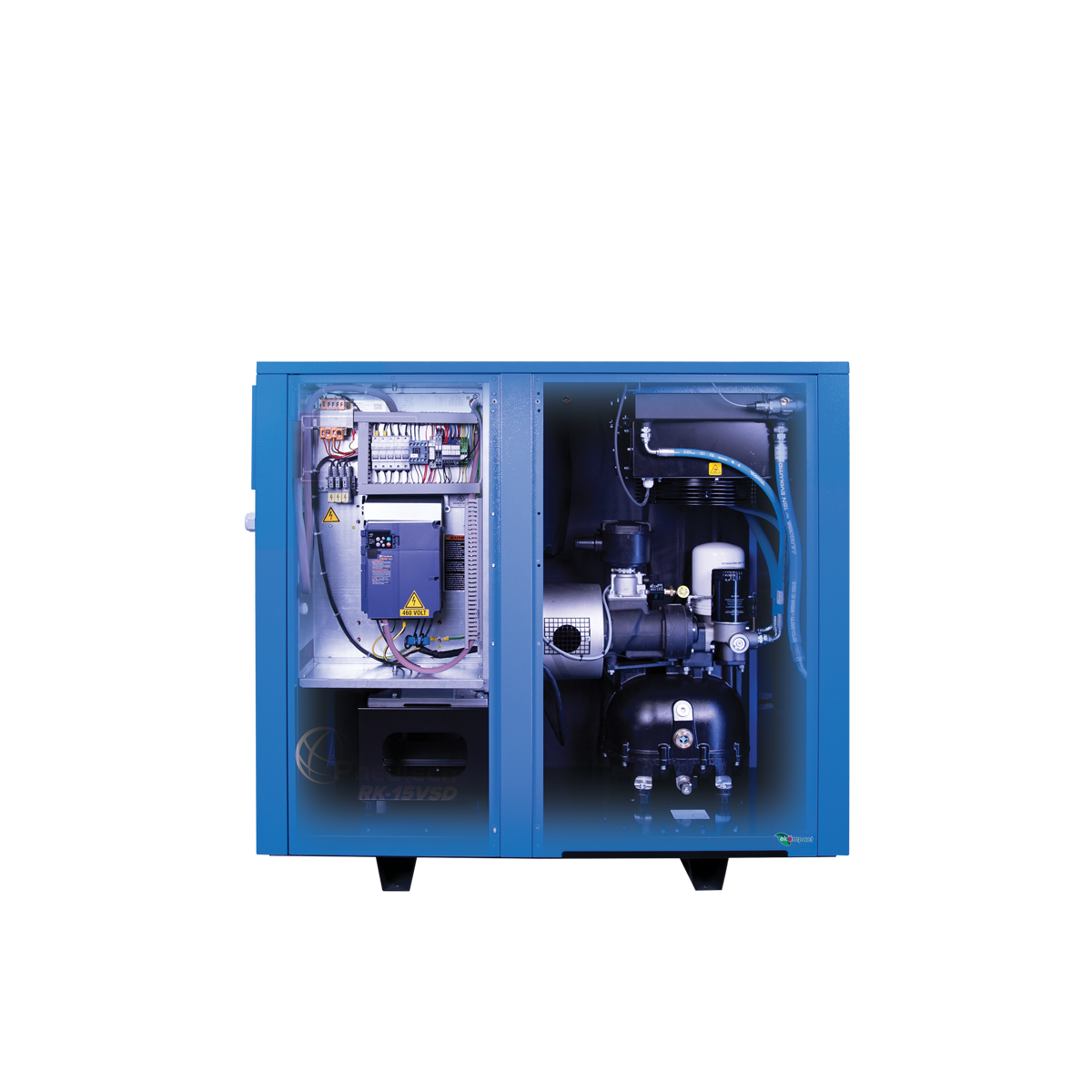

Vented Electrical Cabinet
Vented for maximum cooling of the drive (conveniently accessed from the front of the machine)
Oversized Air/Oil Cooler
Easy-to-access and oversized to allow for higher ambient operating temperatures
Spin-on Filtration
Spin-on air/oil separators and oil filtration allow for quick and effortless replacement
Condensate Trap
The standard condensate trap, located at the discharge of the air cooler removes bulk water. Includes electric solenoid drain valve.
Low RPM Air End Assembly
The oversized air end assembly allows for a low RPM design which provides reduced maintenance,cooler running conditions, and an extended life expectancy.
Direct Drive Design
Direct drive eliminates gear-sets which increases efficiency and reduces noise and vibration levels
Integrated Oil Sump Tank
The oil sump tank is integrated directly with the air end, filtration, thermal valve, and MPCV. This feature reduces hose connections and lessens the chance for oil leakage, and provides a compact design.

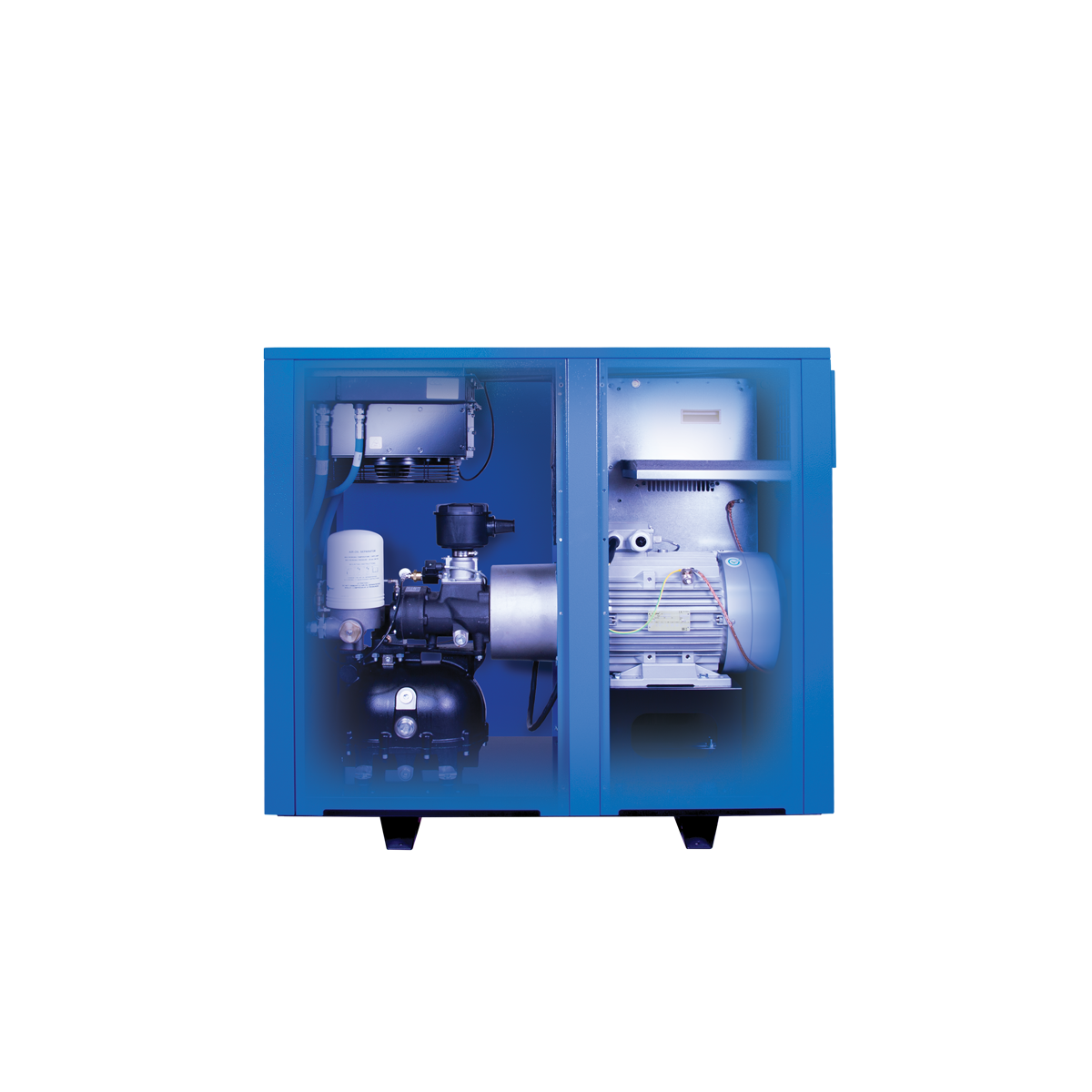

TEFC motor (totally enclosed fan-cooled)
As standard, all RK-VSD units come packaged with a TEFC motor. This feature protects the motor against dirty environments which increases bearing life and the overall longevity of the compressor.
