|Connection||1 1/2" NPT|
|Dimensions LxWxH (in)||25 x 21 x 44|
- Ingersoll Rand D340IN
- Ingersoll Rand 342INA400
- Pneumatech AD175

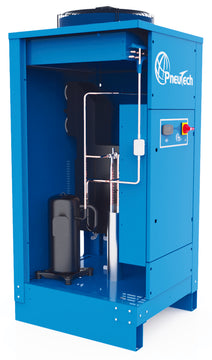

RDA dryers achieve excellent performance even in instances of high ambient (122°F) and high inlet temperatures (158°F), maintaining a low humidity.
Vertical Heat Exchanger Design
The patented aluminum heat exchanger has been designed to offer the maximum performance and minimum pressure drop. The unique heat exchanger is both an air to air heat exchanger as well as an air to refrigeration heat exchanger. The warm and humid air is pre-cooled by the cool dry air that is leaving the dryer, which increases efficiency.

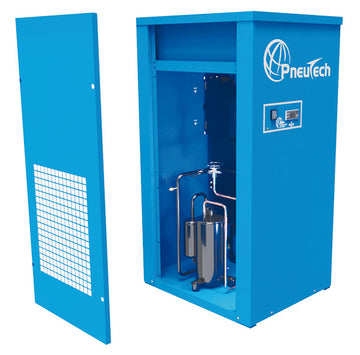

With an average Phillips screwdriver, the panel protecting the major components of the refrigerated dryer slides off, meaning that servicing is not complex and less costly.

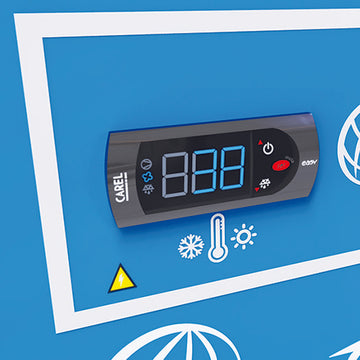

All models have an electronic control board, with a double sensor system that keeps the dew point and condensing pressure within ideal operating parameters.

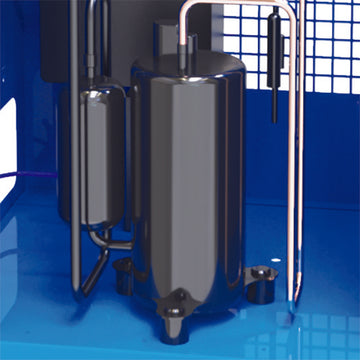

The circulation of the refrigerant in the cooling system is done through the highly efficient refrigerant compressor. Thanks to its innovative construction, this has reduced energy consumption and increased reliability levels.
Single Point Condensate Drain
All RDA models come with a single point condensate connection. This single connection makes it easy when connecting it to your condensate management system.

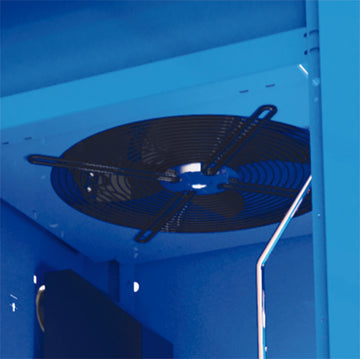

Condenser Fan | Coils
Generous sizing of the condenser unit ensures maximum performance of the refrigerant circuit and the ability to operate with changes in ambient conditions quickly. Access to the condenser for cleaning and maintenance is simple.
Condensate Drain Controls
RDA dryers are equipped with an electronic drain valve which is controlled by the programmable controller. Not only does the controller ensure timely draining of the condensation, but also allows for easy programming and testing of the drain valve.
