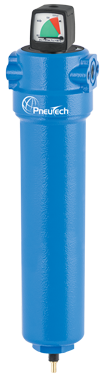

Pneutech FHO-885 Inline Compressed Air Filter

Name: Pneutech FHO-885 Inline Compressed Air Filter
Brand: PneuTech
SKU: FHO-885
Price: 968.0 USD
Availability: InStock

Model #FHO-885

Write a review

Ask a question

Delivery and Returns

Filter housings come standard with a differential pressure gauge and automatic float drain All filter housings are 100% aluminum with an exterior powder coat finish.

All coalescing filter elements utilize a pleated media design to increase surface area. The higher surface area decreases pressure drop and maximizes the element’s contaminant holding capacity.

CFM @ 100 PSIG	885
CFM @ 125 PSIG	905
Clearance Required to Change Element	30.5
Diameter (in)	7
Height	40.5
NPT	2

Particulate Filter

• Particulate removal
• 99.99% efficiency
• Particle removal down to 3 microns

High Efficiency Coalescing Filter

• High quality compressed air filtration
• 99.999% Efficiency
• Particle Removal down to 0.01 Micron
• Max oil carryover 0.008 PPM w/w
• Nominal pressure drop 0.5 PSID
• ISO 8573 (Class 1)

2 in 1 Filter

• Particulate removal or coalescing prefiltration
• 99.99% efficiency
• Particle removal down to 1 micron
• Nominal pressure drop 0.5 PSID
• ISO 8573 (Class 3)

Utility Grade Coalescing Filter

• General compressed air filtration
• 99.999% Efficiency
• Particulate removal down to 1 Micron
• Max oil carryover 0.4 PPM w/w
• Nominal Pressure Drop 0.75 PSID
• ISO 8573 (Class 2)

Activated Carbon Filter

• High purity extended surface area activated carbon removes hydrocarbon mist and vapor
• Max oil carryover
0.002 PPM w/w
• Nominal Pressure
Drop 1.2 PSID
