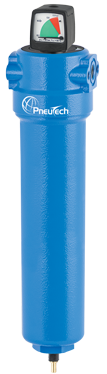

Filter housings come standard with a differential pressure gauge and automatic float drain All filter housings are 100% aluminum with an exterior powder coat finish.
All coalescing filter elements utilize a pleated media design to increase surface area. The higher surface area decreases pressure drop and maximizes the element’s contaminant holding capacity.
CFM @ 100 PSIG | 460 |
---|---|
CFM @ 125 PSIG | 575 |
Clearance Required to Change Element | 6.5 |
Diameter (in) | 5 |
Height | 40.5 |
NPT | 1-1/2 |
Particulate Filter
• Particulate removal
• 99.99% efficiency
• Particle removal down to 3 microns
High Efficiency Coalescing Filter
• High quality compressed air filtration
• 99.999% Efficiency
• Particle Removal down to 0.01 Micron
• Max oil carryover 0.008 PPM w/w
• Nominal pressure drop 0.5 PSID
• ISO 8573 (Class 1)
2 in 1 Filter
• Particulate removal or coalescing prefiltration
• 99.99% efficiency
• Particle removal down to 1 micron
• Nominal pressure drop 0.5 PSID
• ISO 8573 (Class 3)
Utility Grade Coalescing Filter
• General compressed air filtration
• 99.999% Efficiency
• Particulate removal down to 1 Micron
• Max oil carryover 0.4 PPM w/w
• Nominal Pressure Drop 0.75 PSID
• ISO 8573 (Class 2)
Activated Carbon Filter
• High purity extended surface area activated carbon removes hydrocarbon mist and vapor
• Max oil carryover
0.002 PPM w/w
• Nominal Pressure
Drop 1.2 PSID
