Fluid-Aire Dynamics In-Line Filtration Pneutech SHO-80 Moisture Separators with Float Drain

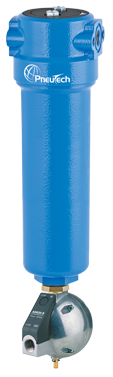

Pneutech SHO-80 Moisture Separators with Float Drain

Name: Pneutech SHO-80 Moisture Separators with Float Drain
Brand: PneuTech
SKU: SHO-80
Price: 349.0 USD
Availability: InStock

Model #SHO-80

Write a review

Ask a question

Delivery and Returns

CFM @ 100 PSIG	80
CFM @ 125 PSIG	100
Diameter (in)	4
Height (in)	17
NPT	3/4"

Particulate Filter

• Particulate removal
• 99.99% efficiency
• Particle removal down to 3 microns

High Efficiency Coalescing Filter

• High quality compressed air filtration
• 99.999% Efficiency
• Particle Removal down to 0.01 Micron
• Max oil carryover 0.008 PPM w/w
• Nominal pressure drop 0.5 PSID
• ISO 8573 (Class 1)

2 in 1 Filter

• Particulate removal or coalescing prefiltration
• 99.99% efficiency
• Particle removal down to 1 micron
• Nominal pressure drop 0.5 PSID
• ISO 8573 (Class 3)

Utility Grade Coalescing Filter

• General compressed air filtration
• 99.999% Efficiency
• Particulate removal down to 1 Micron
• Max oil carryover 0.4 PPM w/w
• Nominal Pressure Drop 0.75 PSID
• ISO 8573 (Class 2)

Activated Carbon Filter

• High purity extended surface area activated carbon removes hydrocarbon mist and vapor
• Max oil carryover
0.002 PPM w/w
• Nominal Pressure
Drop 1.2 PSID

Moisture Separators

This fully automatic drain is designed for the discharging of condensate or any other non-aggressive fluid from a compressed air system. It is heavy duty aluminum and is equipped with a separate manual drain for venting.
