Discover the reliability of Anest Iwata's pioneering oil-free compression technology, delivered and supported by Fluid-Aire Dynamics throughout the Midwest. As your authorized Anest Iwata distributor, we provide their complete line of oil-free scroll compressors from compact 1 HP laboratory units to powerful 60 HP industrial systems, plus their proven ISP Series vacuum pumps — all backed by our expert system design, professional installation and 24/7 emergency service that keeps your critical processes running.

Fluid-Aire Dynamics Delivers Complete Anest Iwata Sales, Installation and Lifetime Support

Fluid-Aire DynamicsBrands We SellAnest Iwata Vacuum Pumps

Anest Iwata Product Lines We Supply & Service

Image for Order Your Anest Iwata Equipment Today
Order Your Anest Iwata Equipment Today
Contact us
Chicago: 847-678-8388
Chicago: 847-678-8388 Milwaukee: 414-273-1994 Minneapolis: 612-246-3432 Detroit: 248-775-1459 Philadelphia: 610-913-9100

SLE Series Compressors

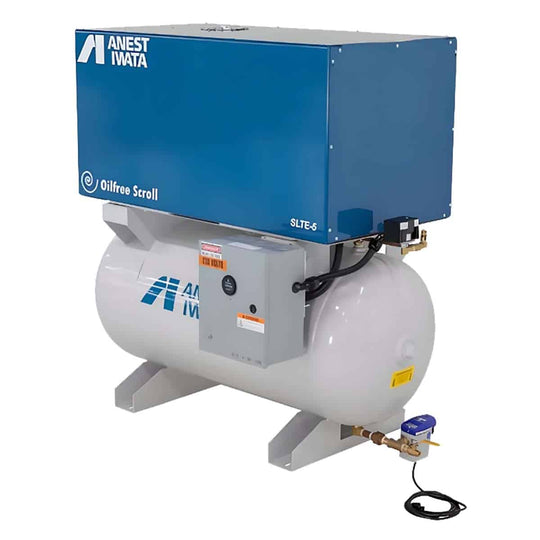

SLE-5 Through SLE-10 Compact Industrial (5–10 HP)

SLE-5 Through SLE-10 Compact Industrial (5–10 HP)

  • Power Range: 5–10 HP (3.7–7.5 kW)
  • Flow: 17–35 CFM at 115 PSI
  • Noise Level: 57–60 dBA
  • Independent air-end control reduces energy waste
  • UL 508A-rated industrial controls
  • BACnet connectivity standard
  • We handle full electrical integration

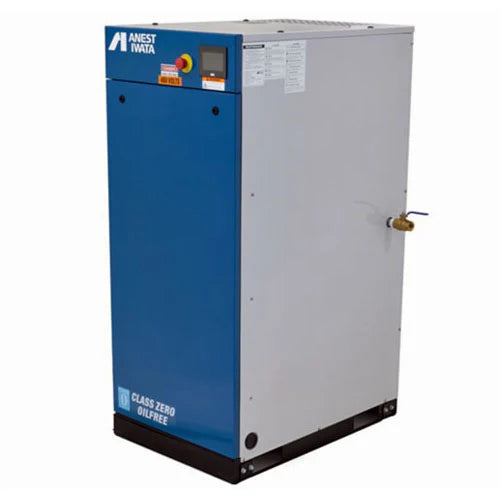

SLE-15 Through SLE-30 Mid-Capacity Production (15–30 HP)

SLE-15 Through SLE-30 Mid-Capacity Production (15–30 HP)

  • Power Range: 15–30 HP (11–22 kW)
  • Flow: 57–115 CFM at 115 PSI
  • Multiple 5 HP air-ends for staged capacity
  • 8,000–10,000 hour maintenance intervals
  • Touch-panel control with remote monitoring
  • Our techs optimize demand sequencing
  • Complete piping and distribution design

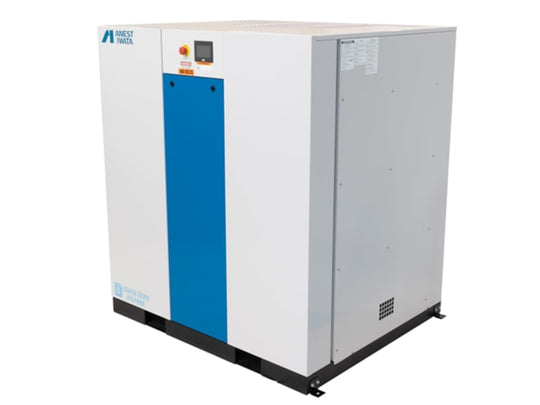

SLE-40 Through SLE-60 High-Demand Industrial (40–60 HP)

SLE-40 Through SLE-60 High-Demand Industrial (40–60 HP)

  • Power Range: 40–60 HP (30–45 kW)
  • Flow: 152–228 CFM at 115 PSI
  • Up to eight independent scroll air-ends
  • Automatic staging based on real-time demand
  • Redundant operation if one air-end fails
  • Three-phase 230/460V configurations
  • We engineer complete system integration

SLT & SLTE Series Tank-Mount Scroll Compressors — Space-Saving Solutions

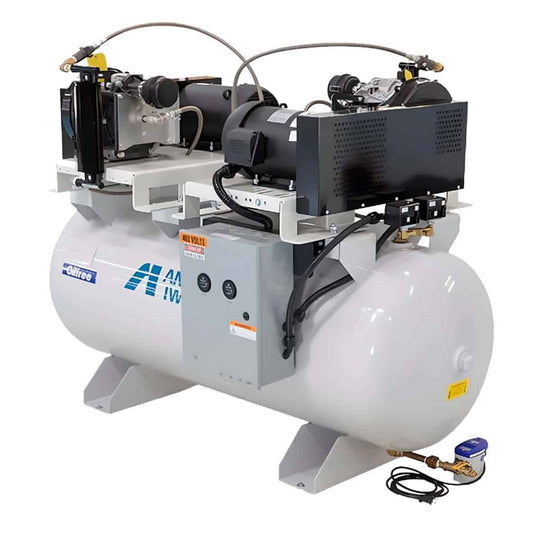

SLT Open Tank-Mount (2–20 HP)

SLT Open Tank-Mount (2–20 HP)

  • Power Range: 2–20 HP (1.5–15 kW)
  • Flow: 6.8–76 CFM at 115 PSI
  • Integrated 60 or 80-gallon receivers
  • Single-phase options through 5 HP
  • Ideal for intermittent demand applications
  • We recommend proper tank sizing
  • Professional installation and startup
SLTE Enclosed Tank-Mount (2–10 HP)

SLTE Enclosed Tank-Mount (2–10 HP)

  • Power Range: 2–10 HP (1.5–7.5 kW)
  • Flow: 6.8–38 CFM at 115 PSI
  • Sound-attenuated enclosure design
  • 60 dBA maximum operating noise
  • Factory-integrated dryer options available
  • Perfect for lab and cleanroom environments
  • We ensure code-compliant installations

SLB Series Base-Mount Scroll Compressors — OEM & Modular Integration

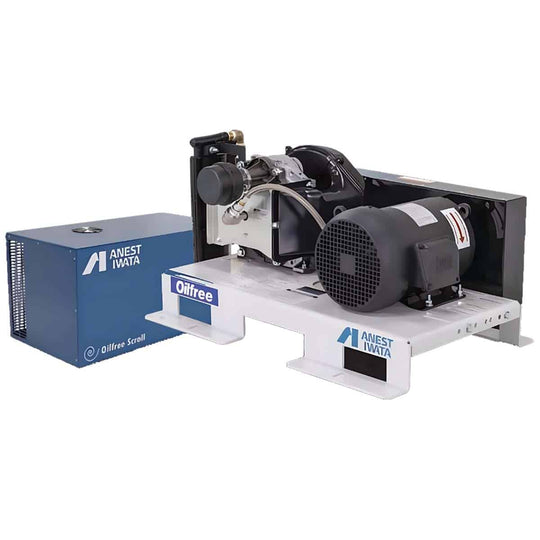

SLB Open Base-Mount (2–10 HP)

SLB Open Base-Mount (2–10 HP)

  • Power Range: 2–10 HP (1.5–7.5 kW)
  • Flow: 6.8–38 CFM at 115 PSI
  • Compact footprint for system integration
  • Direct-drive scroll technology
  • Customer-supplied receiver and controls
  • We integrate with existing systems
  • Perfect for custom skid packages

SLE VFD Series Variable Speed Scroll Compressors — Maximum Efficiency

SLE-VFD Inverter-Driven (2–3 HP)

SLE-VFD Inverter-Driven (2–3 HP)

  • Power Range: 2–3 HP (1.5–2.2 kW)
  • Flow: Modulates 0–100% based on demand
  • 25–30% energy savings versus fixed-speed
  • Soft-start reduces electrical demand
  • Precise pressure regulation ±1 PSI
  • Ideal for fluctuating process demands
  • We program optimal control parameters

OFT Series Tank-Mount Reciprocating — High Pressure Capability

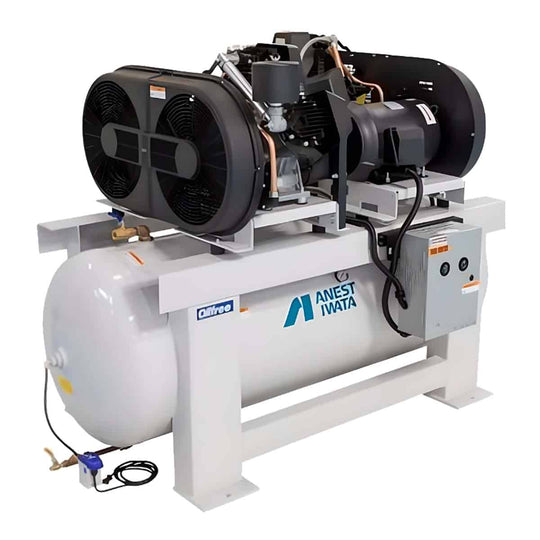

OFT Standard Pressure (1–20 HP)

OFT Standard Pressure (1–20 HP)

  • Power Range: 1–20 HP (0.75–15 kW)
  • Flow: 2.7–69 CFM at 145 PSI
  • Composite resin piston technology
  • Two-stage compression for efficiency
  • 60 or 80-gallon integrated receivers
  • Higher pressure capability than scroll
  • We spec the right pressure for your process

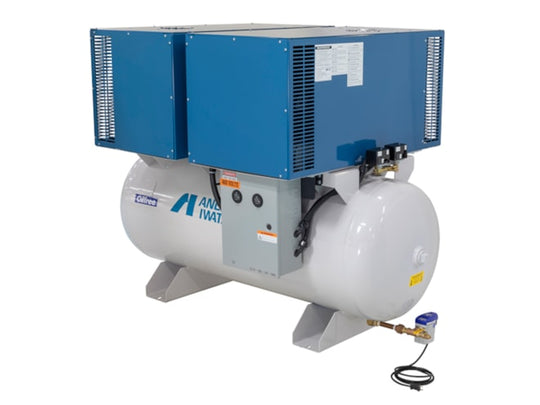

OFT High Pressure (3–15 HP)

OFT High Pressure (3–15 HP)

  • Power Range: 3–15 HP (2.2–11 kW)
  • Maximum Pressure: 203 PSI (1.4 MPa)
  • Flow: 16–48 CFM at 203 PSI
  • Ideal for PET blow molding and high-pressure tools
  • Two-stage compression standard
  • Belt-driven with balanced flywheels
  • Complete high-pressure piping design

OFB & OFBSTE Series Base & Enclosed Reciprocating

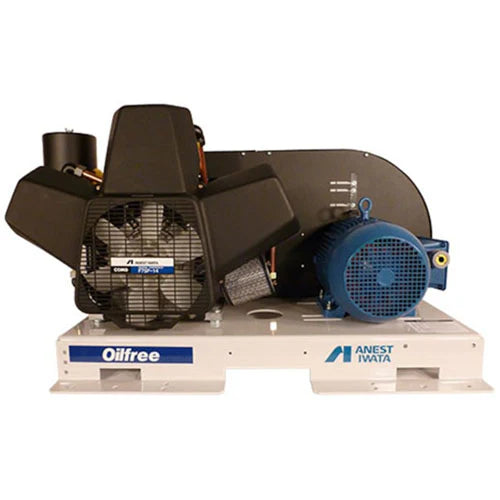

OFB Open Base-Mount (3–15 HP)

OFB Open Base-Mount (3–15 HP)

  • Power Range: 3–15 HP (2.2–11 kW)
  • Flow: 11–56 CFM at 145 PSI
  • Compact skid-mount design
  • Lower initial cost than scroll
  • Customer-supplied tank and controls
  • We handle system integration
OFBSTE Enclosed Duplex Booster (7.5–30 HP)

OFBSTE Enclosed Duplex Booster (7.5–30 HP)

  • Power Range: 7.5–30 HP (5.5–22 kW)
  • Inlet Pressure: 15–87 PSI
  • Outlet Pressure: Up to 174 PSI
  • Designed for pressure-boosting applications
  • Sound-attenuated enclosure
  • Duplex configuration for redundancy
  • We design complete booster systems

ISP Series Oil-Free Scroll Vacuum Pumps

ISP-50 Compact Laboratory (2.1 CFM)

ISP-50 Compact Laboratory (2.1 CFM)

  • Flow Rate: 2.1 CFM (60 L/min)
  • Ultimate Vacuum: 0.11 Torr
  • Weight: 27 lbs — perfect for benchtop
  • Single-phase 115/230V operation
  • We ensure proper installation for your lab

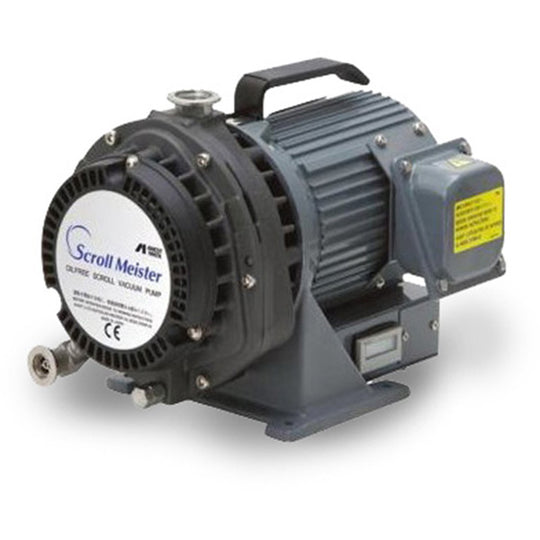

ISP-90 Laboratory Workhorse (3.8 CFM)

ISP-90 Laboratory Workhorse (3.8 CFM)

  • Flow Rate: 3.8 CFM (108 L/min)
  • Ultimate Vacuum: 0.037 Torr
  • Noise Level: <52 dBA ultra-quiet
  • Compact footprint saves lab space
  • Complete startup and training

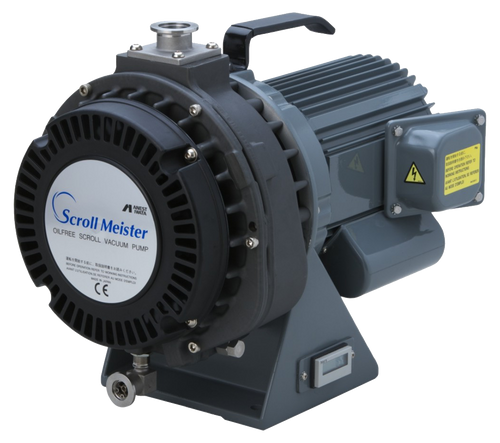

ISP-250C Mid-Range Industrial (10.6 CFM)

ISP-250C Mid-Range Industrial (10.6 CFM)

  • Flow Rate: 10.6 CFM (300 L/min)
  • Ultimate Vacuum: 0.01 Torr
  • Motor Power: 0.4 kW efficient operation
  • KF-25 inlet flange standard
  • Single and three-phase available

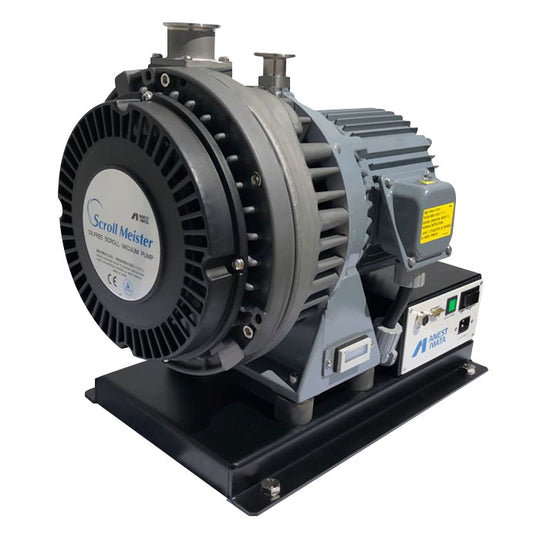

ISP-500C Production Scale (21.2 CFM)

ISP-500C Production Scale (21.2 CFM)

  • Flow Rate: 21.2 CFM (600 L/min)
  • Ultimate Vacuum: 7.5×10⁻³ Torr
  • Motor Power: 0.6 kW
  • KF-40 inlet flange
  • We integrate with your process

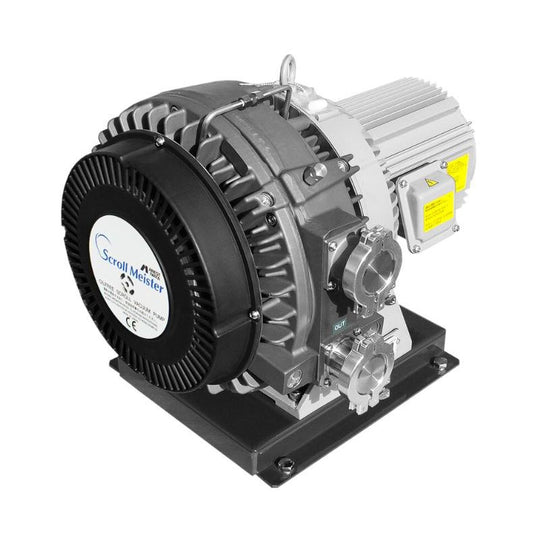

ISP-1000E Maximum Capacity (42.4 CFM)

ISP-1000E Maximum Capacity (42.4 CFM)

  • Flow Rate: 42.4 CFM (1200 L/min)
  • Ultimate Vacuum: 7.5×10⁻³ Torr
  • Motor Power: 1.4 kW three-phase
  • Operating Noise: 68 dBA
  • Complete project management included
Let Fluid-Aire Dynamics Design Your Perfect Compressed Air or Vacuum Solution

Let Fluid-Aire Dynamics Design Your Perfect Compressed Air or Vacuum Solution

Our system experts will analyze your process requirements and recommend the ideal Anest Iwata configuration. From initial consultation through installation and lifetime support, we ensure your system delivers maximum performance and reliability.

Contact us

Why Choose Fluid-Aire Dynamics for Anest Iwata Equipment

  • Authorized Distributor Excellence: Factory-trained technicians with complete Anest Iwata certification and direct manufacturer support
  • Turnkey System Solutions: Design, installation, commissioning and validation — we manage every detail
  • 24/7 Emergency Service: Certified technicians on-call throughout Chicago, Milwaukee, Minneapolis, Detroit and Philadelphia
  • Process Optimization Experts: We don't just sell equipment — we optimize your entire compressed air or vacuum system for maximum efficiency
  • Extensive Parts Inventory: Critical components in stock means faster repairs and minimal process downtime
  • Flexible Acquisition Options: Purchase, lease, rental and rebuilt exchange programs to fit your budget
Why Choose Fluid-Aire Dynamics for Anest Iwata Equipment

Frequently Asked Questions About Our Anest Iwata Equipment

Why should I buy Anest Iwata compressors and vacuum pumps from Fluid-Aire Dynamics?

As an authorized distributor, we provide factory-trained installation, 24/7 emergency service, local parts inventory and comprehensive maintenance programs. You get Anest Iwata's pioneering oil-free technology with our superior regional support.

What makes Anest Iwata scroll compressors superior?

Anest Iwata pioneered the first commercial air-cooled oil-free scroll compressor in 1991. Their patented pin-crank mechanism delivers ISO 8573-1:2010 Class 0 purity with 8,000–10,000 hour maintenance intervals and whisper-quiet operation from 45 to 67 dBA.

How does Fluid-Aire help me select the right compressor or vacuum pump?

Our certified technicians perform comprehensive process analysis, calculate flow and pressure requirements, and recommend the optimal Anest Iwata model for your specific application — not just what's in stock.

Can Fluid-Aire service my existing Anest Iwata equipment?

Absolutely! We service all Anest Iwata models regardless of purchase source. Our technicians are factory-trained on the complete SLE, SLT, OFT, ISP and DVSL product lines.

What industries use Anest Iwata oil-free compressors?

Pharmaceutical manufacturing, food and beverage processing, semiconductor fabrication, medical device production, electronics assembly, laboratory research and any application requiring ISO Class 0 oil-free air.

Does Fluid-Aire offer preventive maintenance for Anest Iwata equipment?

Yes! Our PneumatiCare programs include scheduled maintenance, performance monitoring and predictive diagnostics to maximize your 20+ year equipment life and minimize unplanned downtime.

How quickly can Fluid-Aire deliver Anest Iwata compressors and vacuum pumps?

Popular SLE and ISP models ship from our inventory within days. Custom configurations typically arrive in 4–6 weeks. Emergency rental units available for critical situations.

Can Fluid-Aire help with complete system design?

Absolutely! We engineer complete compressed air and vacuum systems including equipment, piping, controls, filtration, drying and monitoring. Our designs ensure optimal performance and code compliance.

Does Fluid-Aire offer rebuilding services for Anest Iwata equipment?

Yes! Our certified rebuild program restores compressors and vacuum pumps to OEM specifications at 50–60% of new equipment cost, including updated components and extended warranties.

Partner with the Midwest's Oil-Free Compression Experts

When you need reliable, contamination-free compressed air or vacuum for your critical processes, trust Fluid-Aire Dynamics to deliver Anest Iwata quality with unmatched local support. Our team ensures your system operates at peak efficiency for decades to come.
